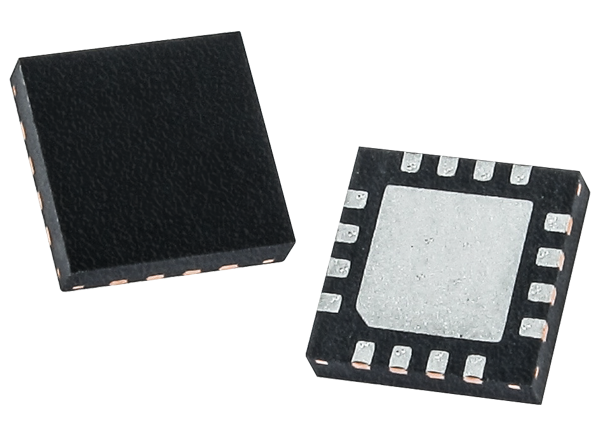

Microchip Technology Égaliseur coaxial asymétrique 6,25 Gbit/s EQCO62X20

L'égaliseur coaxial asymétrique 6,25 Gbit/s EQCO62X20 de Microchip est un ensemble pilote/égaliseur formant une liaison de communication bidirectionnelle en full duplex sur un simple câble coaxial. Le chipset EQCO62X20 est conçu pour transporter jusqu'à 6,25 Gbit/s sur un canal de liaison descendante et jusqu'à 21 Mbit/s sur un canal à liaison montante. L'EQCO62R20 est conçu pour recevoir le signal descendant jusqu'à 6,25 Gbit/s et transmettre le signal montant. L'alimentation peut être transférée sur le même câble via des inducteurs externes. Le chipset est conçu pour fonctionner avec plusieurs types de câbles coaxiaux 75 Ω, notamment les câbles hérités de même que les câbles légers flexibles et minces.

Caractéristiques

Complies with the CoaXPress v1.1 camera standard
Supports up to 68 meters of cable at 6.25Gbps using high-quality coax
Supports up to 212 meters of cable at 1.25Gbps using high-quality coax
Single-Chip solutions for both the camera side and the frame grabber side, making a bidirectional connection over a single 75Ω coax cable
Full-Duplex, bidirectional data channel
Downlink speeds from 1.25Gbps up to 6.25Gbps; differential interfacing straightforward with internal termination resistors

Flexible, protocol-agnostic uplink supporting up to 21Mbps, allowing nanoseconds precise triggering events driven by the frame grabber
Supports power distribution over the coax up to 90mA, powering the camera through the same coax transporting data signals
Low power consumption (<70mW, 1.2B supply)
16-Pin, 0.65mm pin pitch, 4mm QFN package
Small PCB footprint for EQCO62R20 and off-chip components, with guaranteed RF performance
-40C to +85C industrial temperature range
PB-free and RoHS compliant

Applications

High-Definition/High-Bandwidth links to cameras
Machine vision for semiconductor chips and display panel inspection systems
Military, aerospace, medical application
Broadcast and surveillance camera systems

Traffic license plate and monitoring systems
High-Speed inspection systems for food Inspection, bottling inspection, panel inspection, etc
Any application requiring a single coax cable that carries power, video data, and camera control stream
