Mini-Circuits Designer Kits

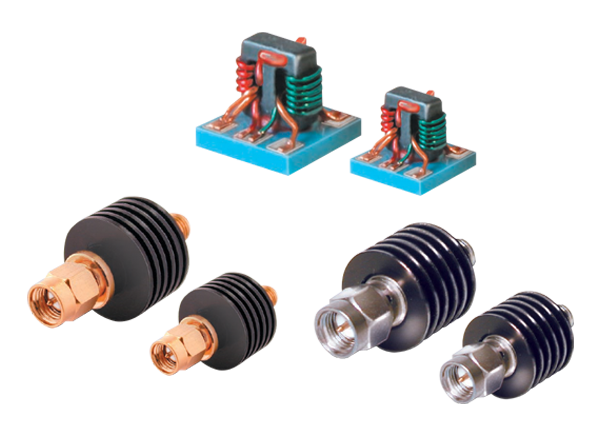

Mini-Circuits Designer Kits are plug-in, surface-mount, and coaxial components kits to aid the evaluation, design, and prototype stages. The kits provide components for the testing laboratory, and each kit contains a carefully selected group of models.
Additional Resources
Amplifiers
- K1-ERA+ DC to 8GHz Up to 13dBm Output Power
- K2-ERA+ DC to 4GHz Up to 18.4dBm Output Power
- K1-ERASM+ DC to 8GHz 18.4dBm Output Power, Up to 13dBm Output Power
- K3-ERASM+ DC to 4GHz Up to 18.4dBm Output Power
- K3-Gali_GVA+ DC to 8GHz Up to 21.5dBm Output Power
- K4-Gali+ DC to 8GHz Up to 18.2dBm Output Power
- K5-Gali+ DC to 4GHz Up to 15.9dBm Output Power
- K1-GVA+ DC to 7GHz Up to 21dBm Output Power
- K2-LEE+ DC to 8GHz Up to 17.3dBm Output Power
- K-ZFL 2.5kHz to 2000MHz Up to 22dBm Output Power
Cables
- KHFC-1+ DC to 18GHz 3" Hand-Formable Interconnect Cables, SMA Male to SMA Male
- KHFC2-141+ DC to 18 GHz, SMA-Male Connectors
- KHFC3-141+ DC to 18 GHz, SMA-Male Connectors
- KHFC3-086+ DC to 18 GHz, SMA-Male Connectors
- KHFC1-047+ DC to 18 GHz, SMA, SMP, SMP Right-Angle Connectors
- KHFC2-086+ DC to 18 GHz, SMA-Male Connectors
- KHFC4-086+ DC to 18 GHz, SMA, SMA Right-Angle, SMA w/Bulkhead Connectors
- KTFC1-FL47+ DC to 50GHz, SMPM Connectors
Filters
- K-SCF+ DC to 420MHz Low Pass
- K-LHP+ DC to 1800MHz Low Pass and High Pass
- K1-HFCG+ 1400 to 18500MHz High Pass
- K1-HFCN+ 710 to 7000MHz High Pass
- K1-LFCG+ DC to 990MHz Low Pass
- K1-LFCN+ DC to 630MHz Low Pass
- K1-LTCC-WBZ+ 2.4 to 2.5GHz and 4.9 to 5.9GHz LTCC Filters and Diplexers for WiFi Applications
- K2-HFCN+ 950 to 13000 MHz High Pass
- K2-LFCG+ DC to 2250MHz Low Pass
- K2-LFCN+ DC to 6700MHz Low Pass
- K3-LFCN+ DC to 630MHz Low Pass
- K4-LFCN+ DC to 6700MHz Low Pass
- K5-LFCN+ DC to 6700MHz Low Pass
- KWC-LHP 80MHz to 13GHz Low Pass and High Pass Made to Order
- K3-LFCG+ C to 6100MHz Low Pass
Fixed Attenuators / Terminations
- K2-BW1+ DC to 18GHz 2 Watts
- K2-BW2+ DC to 18GHz 2 Watts
- K2-BW3+ DC to 18GHz 2 Watts
- K5-BW1+ DC to 18GHz 5 Watts
- K5-BW2+ DC to 18GHz 5 Watts
- K5N-BW3+ DC to 18GHz 5 Watts
- K1-GAT+ DC to 8GHz 0.5 Watts
- K2-GAT+ DC to 8 GHz 0.5 Watts
- K3-GAT+ DC to 8 GHz 0.5 Watts
- K1-HAT+ DC to 2GHz 1 Watts
- K2-HAT+ DC to 2GHz 1 Watts
- K1-KAT+ DC to 43.5GHz 2 Watts
- K2-KAT+ DC to 43.5GHz 2 Watts
- K1-LAT+ DC to 2.5GHz 0.5 Watts
- K1-PAT+ DC to 7GHz 1 Watts
- K2-PAT+ DC to 7GHz 1 Watts
- K1-RCAT+ DC to 20GHz 2 Watts
- K1-VAT+ DC to 6GHz 1 Watts
- K2-VAT+ DC to 6GHz 1 Watts
- K3-VAT+ DC to 6GHz 1 Watts
- K1-VAT2+ DC to 6GHz 2 Watts
- K2-VAT2+ DC to 6GHz 2 Watts
- K3-VAT2+ DC to 6GHz 2 Watts
- K4-VAT2+ DC to 6GHz 2 Watts
- K1-UNAT+ DC to 6GHz 0.5 and 1 Watts
- K2-UNAT+ DC to 6GHz 0.5 and 1 Watts
- K1-YAT+ DC to 18GHz Up to 2 Watts
- K2-YAT+ DC to 18GHz Up to 2 Watts
Frequency Mixers
- K1-ADE+ 2 to 4000MHz 3 to 17dBm LO Powers
- K1-MCA+ 500 to 5000MHz 10, 13, and 17dBm LO Powers
- K1-MCA1+ 300 to 1200MHz 4 to 17dBm LO Powers
- K1-SIM+ 750 to 15000MHz 4, 7, and 10dBm LO Powers
- K1-ZX05+ 5 to 15000MHz, 7dBm LO Power
- K2-ZX05+ 0.5 to 15000MHz 10 and 13dBm LO Powers
- K3-ZX05+ 5 to 10000MHz 17dBm LO Power
Phase Detectors
RF Transformers
- K2-LTCC-WBZ+ 2.4 to 2.5 GHz and 4.9 to 5.9 GHz LTCC Couplers and Baluns for WiFi Applications
- K-ADT-1+ 0.15 to 775MHz Impedance Ratios from 1:1 to 1:9, 50Ω
- K1-ADTL+ 0.5 to 1800MHz Impedance Ratios of 1:1 and 1:2 50Ω and 75Ω Models
- K1-TCG2+ 0.3 to 3000MHz Impedance Ratios from 1:9 to 16:1 50Ω and 75Ω Models
- K1-TCM+ 0.5 to 2500MHz Impedance Ratios from 1:1 to 9:1 Transformers
- K1-TCN+ 600 to 2600MHz Impedance Ratios from 1:1 to 4:1 LTCC Construction
- TK-5+ 0.01 to 350MHz Impedance Ratios from 1:1 to 16:1
