Mini-Circuits PMA3 MMIC Amplifiers

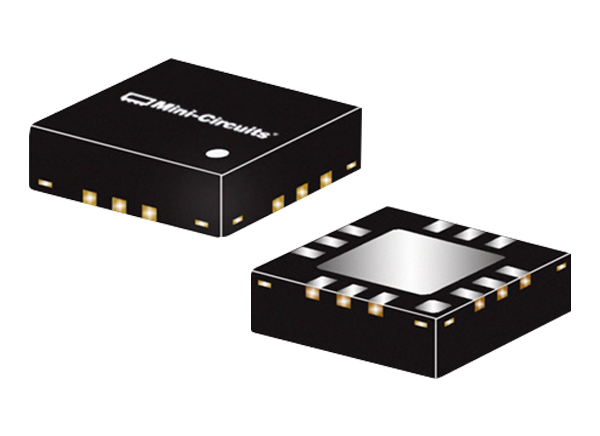

Mini-Circuits PMA3 MMIC (Monolithic Microwave Integrated Circuit) Amplifiers offer a low noise rating in a tiny plastic package (3mm x 3mm x 0.89mm). The amplifiers also feature a unique combination of low noise, high IP3, and flat gain over wideband, making them ideal for sensitive, high-dynamic-range receiver applications. The 3mm x 3mm package product line permits space in dense layouts while providing low inductance, repeatable transitions, and excellent thermal contact to the PCB. The Mini-Circuits PMA3 MMIC Amplifiers are ideal for LTE, Wi-Fi®, and WLAN applications.


  • Internally matched
  • High gain
  • Low noise
  • High IP3
  • 3mm x 3mm x 0.89mm package


  • WiFi
  • WLAN
  • UMTS
  • LTE
  • WiMAX
  • S-band radar
  • C-band satcom

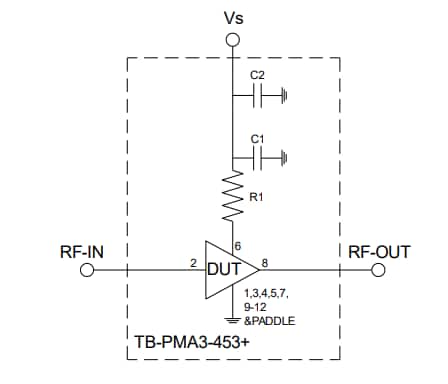

Application Circuit Diagram - Mini-Circuits PMA3 MMIC Amplifiers
