Monolithic Power Systems (MPS) EVKT-MP2731 Evaluation Kit

Monolithic Power Systems (MPS) EVKT-MP2731 Evaluation Kit includes everything required to demonstrate the capabilities of the MP2731 Switch-Mode Battery Charger IC. The MP2731 works with NVDC system power path management and supports USB On-The-Go (OTG) operation. The device's low-impedance power path optimizes efficiency, reduces battery charging time, and extends battery life. The I²C serial interface allows the charging and system settings of the MP2731 to be easily controlled. The MP2731 is ideal for use with single-cell Li-ion or Li-polymer batteries.

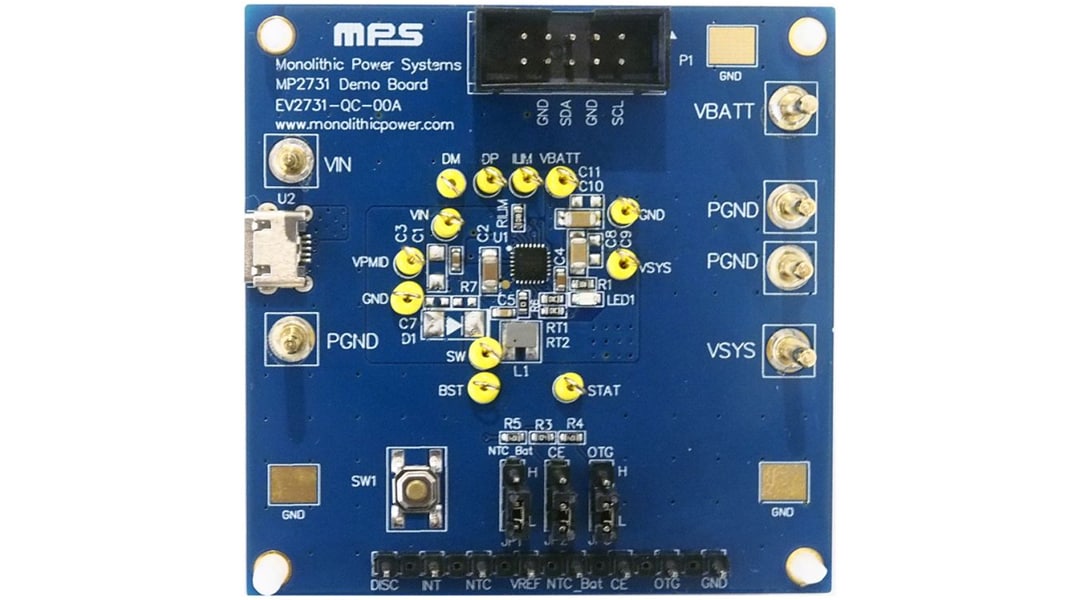

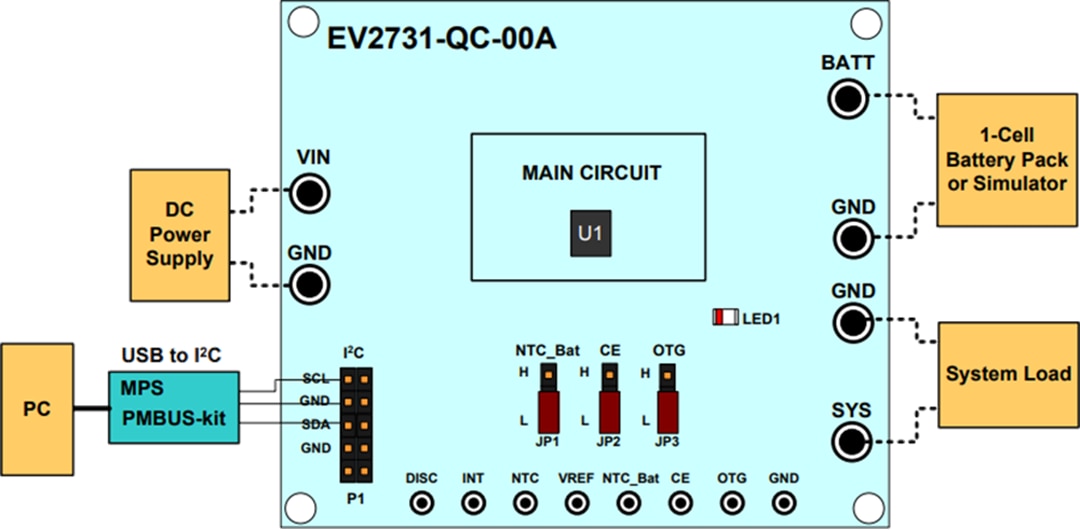

The Monolithic Power Systems (MPS) EVKT-MP2731 Evaluation Kit includes the EV2731-QC-00A Evaluation Board featuring a pre-installed MP2731 in a QFN-26 package. The Evaluation Board connects to the EVKT-USBI2C-02 USB to I²C/PMBus Dongle (included), which in turn connects to a Microsoft Windows-based PC. An I²C Graphic User Interface (GUI) provides an easy-to-use interface for demonstrating the features of the MP2731 Battery Charger IC.

Features

Pre-installed MP2731 Battery Charger IC
Includes EVKT-USBI2C-02 USB to I²C/PMBus Dongle
Easy-to-use GUI
Test posts enable access to key signals
3.7V to 16.0V input voltage (V_IN)
I²C configurable charge full voltage; 4.2V default (V_{BATT_REG})
I²C configurable charge current; 1.8A default (I_CC)

I²C configurable input voltage regulation; 4.3V default (V_{IN_MIN})
I²C configurable input current limit; 0.5A default (I_{IN_LIM})
I²C configurable OTG voltage regulation; 5.0V default (V_{IN_DSCHG})
I²C configurable OTG current limit; 0.5A default (I_{IN_DSCHG})
63.0mm x 63.0mm x 13.0mm PCB

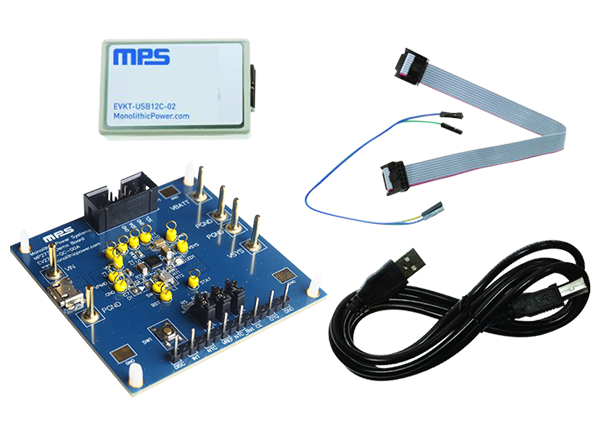

Kit Contents

EV2731-QC-00A Evaluation Board
EVKT-USBI2C-02 USB to I²C/PMBus Dongle
1x USB cable

1x 10-pin ribbon cable
1x 3-pin ribbon cable

Software

The MP2731 Evaluation GUI provides an easy-to-use interface for demonstrating the features of the MP2731 Battery Charger IC. By using this software, the user can set the output voltage, PG delay enables, output current limit, and more.
