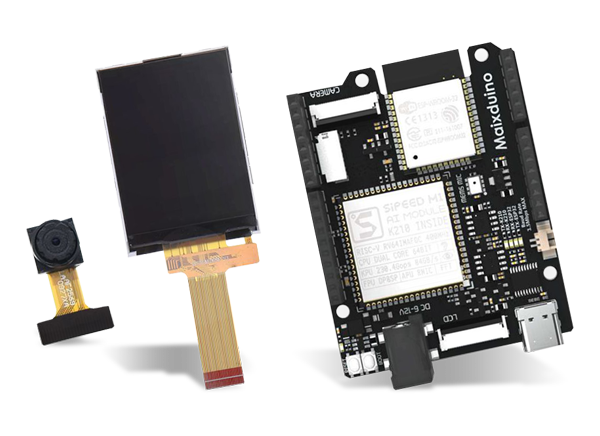

Seeed Studio Sipeed Maixduino Kit for RISC-V AI + IoT
Seeed Studio Sipeed Maixduino Kit for RISC-V AI + IoT includes the RISC-V 64 development board based on the MAIX Module and is ideal for AI + IoT applications. Maixduino was designed in an Arduino Uno form factor, different from other Sipeed MAIX development boards. The Maixduino features an ESP32 module on board together with the MAIX AI module.
Features
- CPU: RISC-V Dual Core 64bit, with FPU; 400MHz neural network processor
- QVGA@60FPS/VGA@30FPS image identification
- Onboard ESP32 module support 2.4G 802.11.b/g/n and Bluetooth 4.2
- Arduino Uno form factor, Arduino compatible interface
- Onboard omnidirectional I2S digital output MEMS Microphone
- 24P 0.5mm FPC connector for DVP Camera
- 8bit MCU LCD 24P 0.5mm FPC connector
- Machine vision based on convolutional neural network
- Support self-elastic micro SD card holder
- Reset and boot button; 3W DAC+PA Audio output
- Connect the USB Type-C cable to complete the download
- High-performance microphone array processor for machine hearing
- Support MaixPy IDE, Arduino IDE, OpenMV IDE, and PlatformIO IDE
- Support Tiny-Yolo, Mobilenet and TensorFlow Lite for deep learning
Applications
- Smart Home
- Medical Industry
- Smart Industry
- Education
- Agriculture

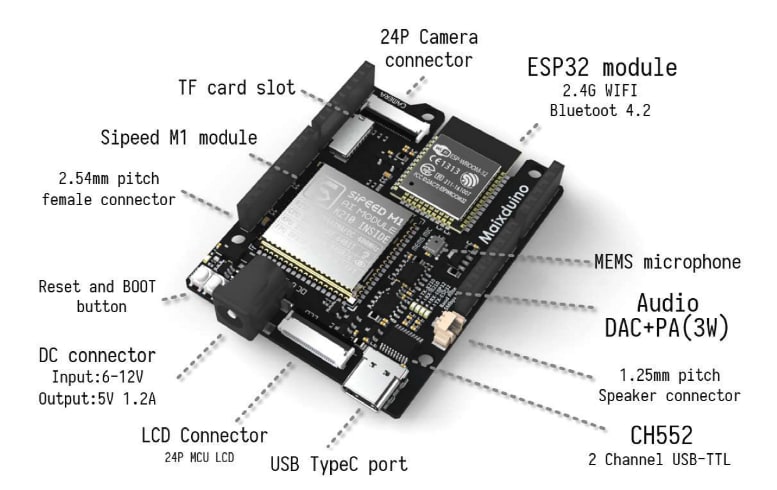

Board Layout

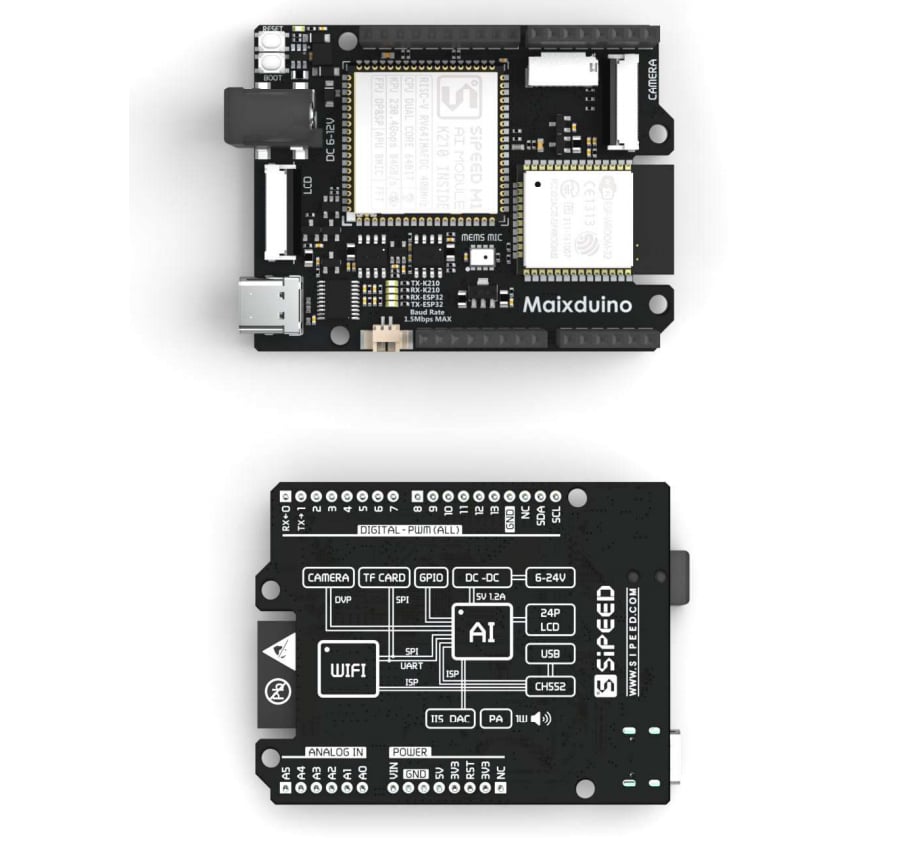

Board Front & Back View
Additional Resource
