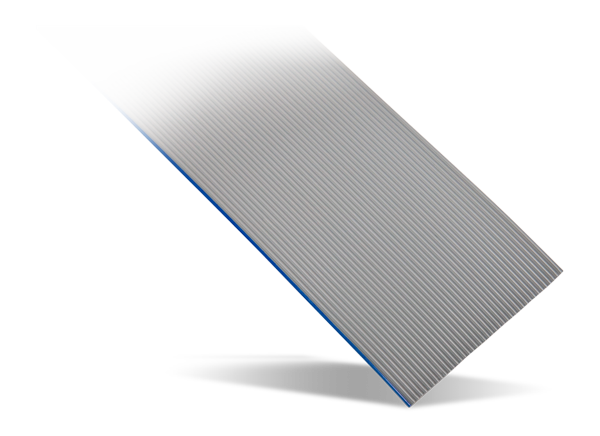

3M Halogen-Free Flat Cables have been expanded to include HF319 High Flex Life Halogen-Free Flat Cables. The HF319 Halogen-Free Flat Cables feature 19 strands of high strength copper to provide an exceptionally long flex life of 25 million cycles at 3/4 inch radius. 3M Halogen-Free Flat Cables have Low Smoke Zero Halogen (LSZH) polyolefin insulation, resulting in low smoke (IEC 61034-2:2005), low toxicity of combustion gases (NFX70-100-2:2006), and reduced soot and corrosion damage to nearby equipment.
USA - 300V
Canada - 150V
EU - <50V
>1 × 1010Ω/10ft. [3m] insulation resistance
14.1pF/ft [46.3pF/m] (Unbalanced)
8.2pF/ft [26.9pF/m ] (Balanced)
0.15μH/ft [0.49μH/m] (Unbalanced)
0.23μH/ft [0.75μH/m] (Balanced)
1.47ns/ft [4.82ns/m] (Unbalanced)
1.37ns/ft [4.49ns/m] (Balanced)
Velocity of Propagation
3M Round Conductor Halogen Free Flat Cables
Provides low smoke, low gas toxicity and reduced soot damage to equipment.
