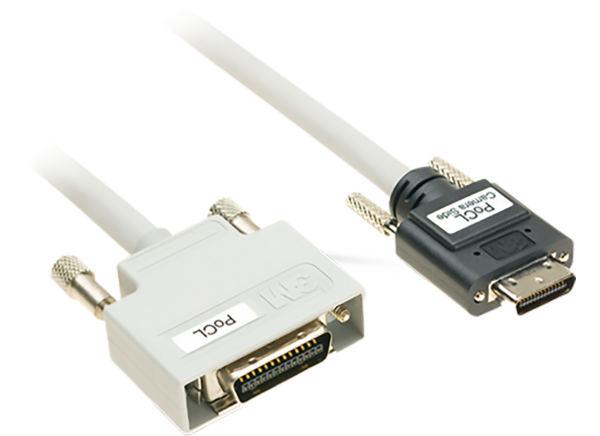

3M Power over Camera Link® (PoCL) Cable Assemblies carry power in addition to signal to enable use in base configuration Power over Camera Link applications. The 3M .80mm digital camera PoCL Cable Assemblies are available in a variety of cable lengths and mate to industry-standard Shrunk Delta Ribbon (SDR) 26-position PoCL camera connections.
Connects between Mini-Camera Link style (SDR) I/O ports on PoCL Cameras and Camera Link style (MDR) ports on PoCL frame grabbers
Both straight and right angle cable exit available
3 shielded quads and 6 unshielded twisted pairs
Entire cable bundle shielded with foil and braid for additional signal protection
Rugged ribbon type contact for reliable, repeatable connectivity
EMI shielded end-to-end for reduced emissions
3M Digital Camera Cables are primarily used in machine vision applications for the connection between the camera and the frame grabber
Use in other LVDS signaling applications is also possible.

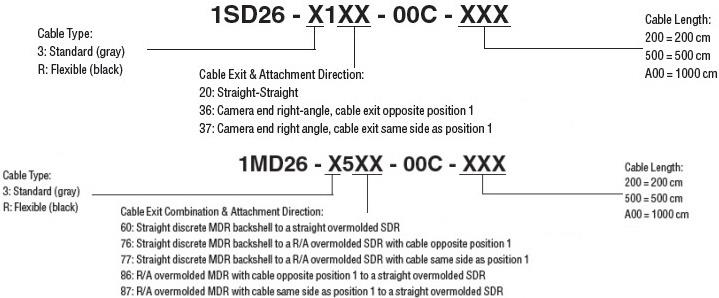

Ordering Information for 3M Power over Camera Parts
