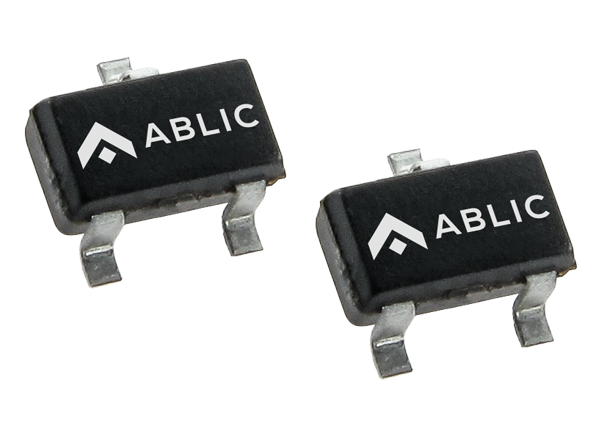

ABLIC S-5701 B Series Magnetic Sensor ICs
ABLIC S-5701 B Series Magnetic Sensor ICs offer a 1.7V to 5.5V power supply voltage, 160nA current consumption, and TSOT-23-3S package. These sensors operate with low current consumption and low voltage and are developed by tunnel magnetoresistance effect (TMR) technology and CMOS technology. The output voltage level changes when the IC detects the intensity level of magnetic flux density. ABLIC S-5701 B Series Magnetic Sensor ICs are ideal for utility meters, wearable devices, and home security devices.
Features
- Low current consumption
- High sensitivity magnetic characteristics
- Thin TSOT-23-3S package
- TMR technology
- CMOS technology
Applications
- Home security devices
- Utility meters
- Battery-powered devices
- Wearable devices
Specifications
- 1.7V to 5.5V power supply voltage range
- −40°C to +125°C operating temperature range
- 160nA low current consumption

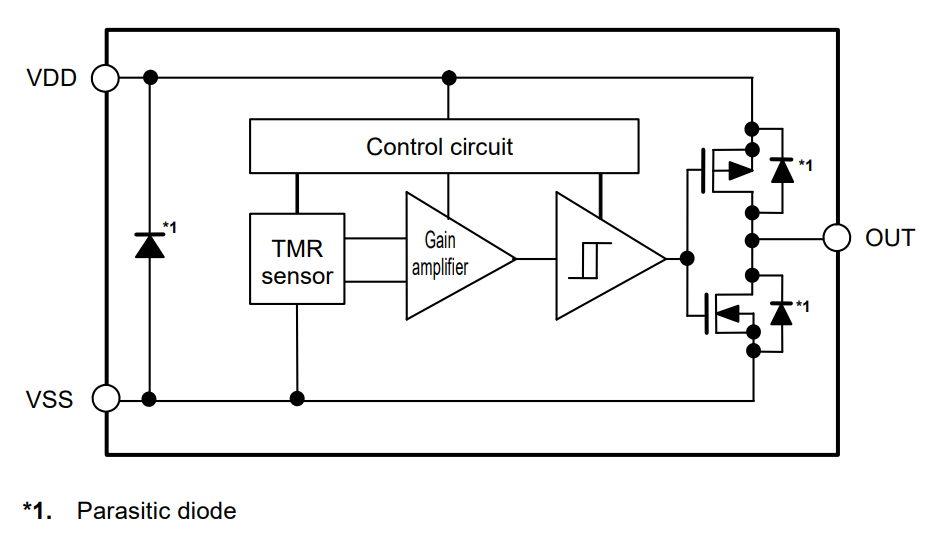

Block Diagram
