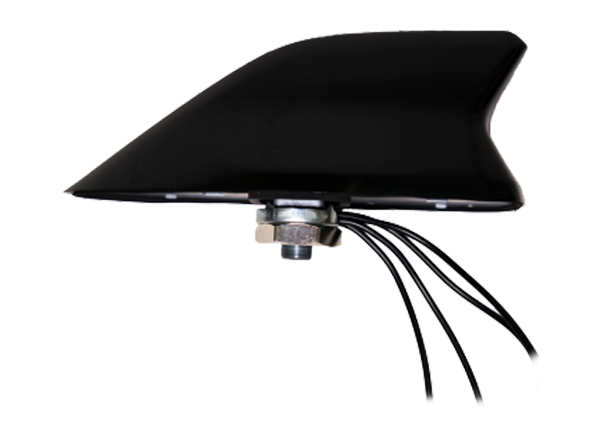

Abracon AECS1806D07Z 2xLTE MIMO + GNSS + AM/FM Antenna
Abracon AECS1806D07Z Automotive 2xLTE MIMO + GNSS + AM/FM Sharkfin Antenna is a four-cabled combo antenna. The antenna features MIMO 2x LTE, active GNSS / GPS / GLONASS / BeiDou / QZSS, and AM/FM. This IP67-rated module features easy screw-mount installation. Abracon AECS1806D07Z Automotive 2xLTE MIMO + GNSS + AM/FM Sharkfin Antenna is IATF 16949 and ISO 9001 automotive certified.
Features
- Four cabled combo antenna
- MIMO 2x LTE
- Active GNSS / GPS / GLONASS / BeiDou / QZSS
- AM/FM
- IP67 rated
- Easy screw mount installation
- Manufactured in automotive certified lines
- IATF 16949 certified
- ISO 9001 certified
Applications
- Internet of Things (IoT)
- Machine-to-machine (M2M)
- Telematics
- Transportation
- Smart agriculture
- Geolocation and tracking

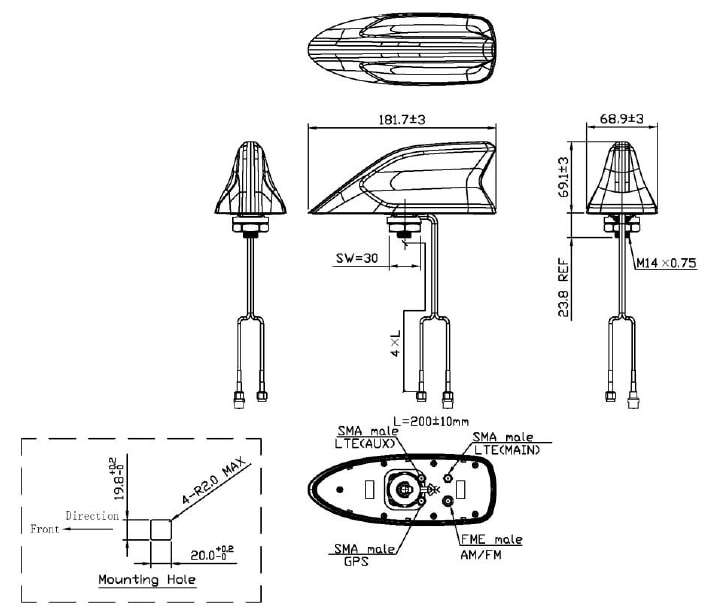

Dimensions (mm)
