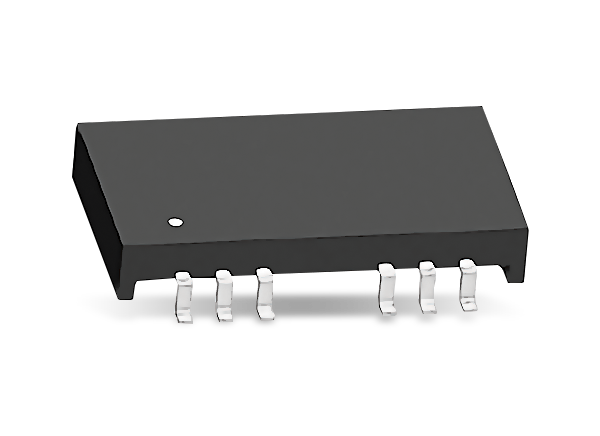

Abracon ALANL100X1 Low Profile LAN Transformer Modules

Abracon ALANL100X1 10/100 BASE-TX Low Profile SMD LAN Transformer Modules use high-performance magnetics for EMI suppression and common mode noise rejection. These signal/audio transformers come in a low profile package with 12.7mm x 7.1mm x 2.1mm dimensions and 12 or 16 pins. Abracon ALANL100X1 Low Profile LAN Transformer Modules are compatible with 10 BASE-T and 100 BASE-TX, lead-free, and RoHS/RoHS II compatible.

Features

  • 2.15mm low profile
  • Meets IEEE 802.3u standards
  • High-performance magnetics for EMI suppression and common mode noise rejection
  • Compatible with 10 BASE-T and 100 BASE-TX
  • 1CT:1CT TX and RX transformers
  • RoHS/RoHS II compliant

Specifications

  • 350µH minimum inductance
  • 0.5µH maximum leakage inductance
  • 30pF maximum interwinding capacitance
  • 1500VRMS Hi-Pot
  • 0.33g in weight
  • 12.7mm x 7.1mm x 2.1mm

Applications

  • Fast Ethernet
  • IP cameras, surveillance, and IP phone
  • Industrial computers and robotics
  • PC card and Cardbus
