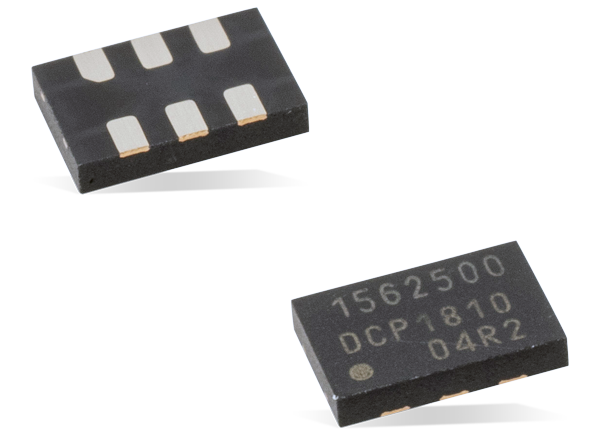

Abracon ASxxx MEMS Oscillators

Abracon ASxxx MEMS Oscillators feature low power consumption at <10mA and exceptional stability at ±10ppm Over Temp. at -40 to +105°C and ±5ppm over -40°C to +85°C. Abracon ASxxx MEMS Oscillators are available in 30kG shock resistance configuration and 3 ultra-miniature sizes: ASDMB is 2.5mm x 2.0mm x .85mm, ASEMB is 3.5mm x 2.5mm x .85mm, and ASFLMB is 5.0mm x 3.2mm x .85mm. Applications include computers and peripherals, portable electronics, consumer electronics, and military and automotive electronics.

Features

  • Ultra Miniature Pure Silicon™ Clock Oscillator
  • 2nd Generation MEMS Technology with reduced jiter by Discera
  • Low Power Consumption <10mA
  • Exceptional Stability ±10ppm Over Temp. at -40 to +105°C, ±5ppm over -40°C to +85°C
  • Available in 30kG Shock Resistance Configuration
  • Compact QFN Plastic Packaging

Applications

  • CCD Clock for VTR Camera
  • Equipment Connected to PCs
  • Low Profile Equipment
  • Computers and Peripherals
  • Lower Cost Crystal Oscillator Replacement
  • Portable Electronics (MP3 Players, Games)
  • Consumer Electronics such as TV's, DVR's, etc.
  • Vibrant, Shock-Prone & Humid Environments for Industrial Equipment
  • Demanding Military & Automotive Electronics
