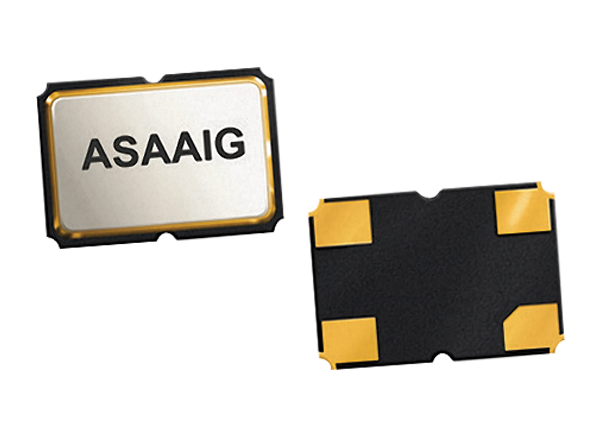

Abracon ASAAIG Automotive & Industrial Crystal Oscillators

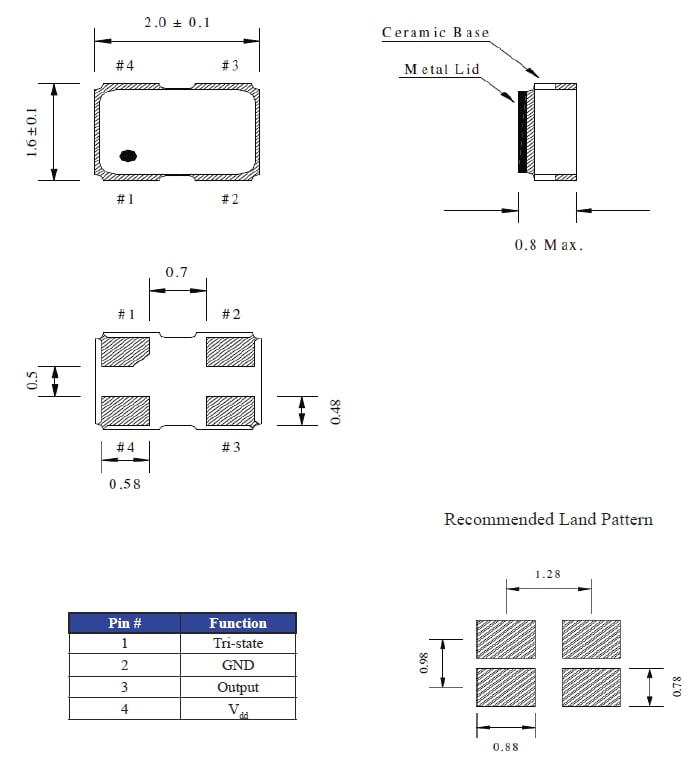

Abracon ASAAIG Automotive & Industrial Grade Miniature SMD Crystal Oscillators are AEC-Q200 qualified. The oscillators operate at a frequency range from 1.25MHz to 100MHz and overall frequency stability range from -150ppm to 150ppm. The ASAAIG crystal oscillators are available in seam-sealed ceramic packages that assure high precision and reliability. These SMD oscillators are available in low profile and a miniature size with 2.0mm x 1.6mm x 0.8mm dimensions. The crystal oscillators have an extended operating temperature range of -40°C to 125°C and are suitable for the RoHS reflow profile. These ASAAIG crystal oscillators are ideal for automotive and industrial electronics.


  • AEC-Q200-qualified
  • Automotive-grade 1: -40°C to +125°C
  • TS16949 production line certified
  • PPAP available upon request
  • Hermetically seam-sealed ceramic package
  • RoHS/RoHS II-compliant and Pb free


  • Infotainment systems
  • Keyless entry & startup
  • GPS & navigation
  • Comfort control
  • ADAS (Advanced Driver Assistance Systems)
  • Vehicle-to-vehicle communication
  • LiDAR (Light detection and ranging)
  • In-vehicle networking
  • Powertrain & drive control
  • Power control & conversion
  • Industrial control & automation


Abracon ASAAIG Automotive & Industrial Crystal Oscillators
Publié le: 2020-01-08 | Mis à jour le: 2022-03-10
