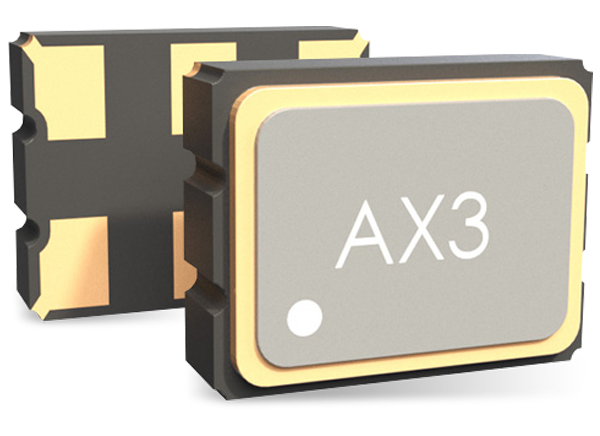

Abracon AX3 ClearClock™ Crystal Oscillators
Abracon AX3 ClearClock™ Crystal Oscillators offer RMS jitter of less than 80fs typical (150fs maximum at 156.25MHz). Abracon crystal oscillators are also power optimized with 16mA typical LVDS at 156.25MHz. AX3 provides ±25ppm stability over the industrial operating temperature range (-40°C to +85ºC) and offers 3.3V, 2.5V, and 1.8V supply voltage options. Applications for Abracon AX3 ClearClock Crystal Oscillators include PCI Express, 10G / 40G / 100G optical Ethernet, networking and communication, and more.
Features
- Less than 80fs (typ.) RMS jitter (150fs maximum at 156.25MHz)
- 100MHz and 200MHz frequencies
- 16mA typical LVDS at 156.25MHz power consumption
- -40°C to +85ºC operating temperature
- ±25ppm stability over operating temperature
- 3.3V, 2.5V, and 1.8V supply voltage options
- LVPECL, LVDS, HCSL differential outputs
- 3.2mm x 2.5mm x 1.0mm dimensions
Applications
- PCI Express
- 10G / 40G / 100G optical Ethernet
- Networking and communication
- RF systems and base stations (BTS)
- Data center
- Test and measurement

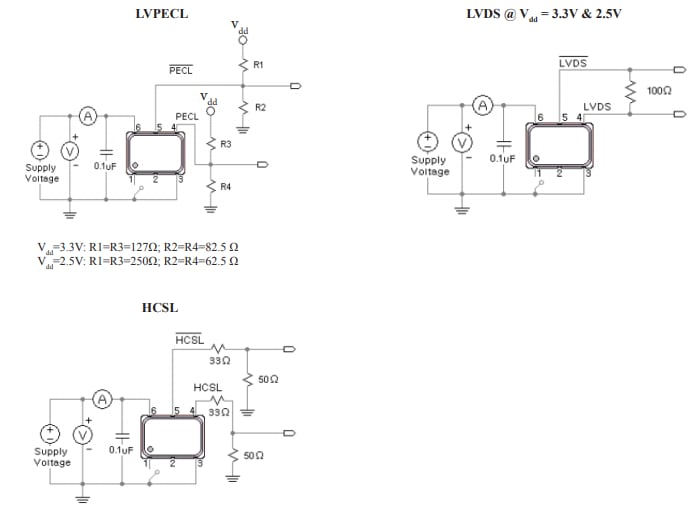

Recommended Test Circuit
Related Oscillators
Abracon AX3-0006-T Fixed-Frequency SMD Clock Oscillator
Features ultra-low jitter (<95fs typical) and ±20ppm stability over an industrial temperature range.
