Advantech WISE-1510 Ms.COM LoRa IoT Sensor Node
Advantech WISE-1510 M2.COM Internet of Things (IoT) LoRaWAN Sensor Node features an integrated Arm® Cortex®-M4 processor and LoRa transceiver. This certified sensor node provides multiple interfaces for sensors and I/O control such as UART, I2C, SPI, GPIO, PWM, ADC, and more. Data can be easily and quickly acquired and transformed into a different format to communicate with WISE-PaaS, Arm Pelion, or other cloud services. Other features include power consumption optimization, wide area reception, and -40°C to +85°C operating temperature range. Advantech WISE-1510 Ms.COM LoRa IoT Sensor Node is ideal for smart cities, agriculture, metering, street lighting, and environment monitoring.Features
- Arm Cortex-M4 core processor
- Support for public LoRaWAN or private LoRa networks
- Ideal for low-power, wide-range applications
- Multiple I/O interfaces for sensor and control
- -40°C to +85°C operating temperature range
Applications
- Smart cities
- Agriculture
- Metering
- Street lighting
- Environment monitoring

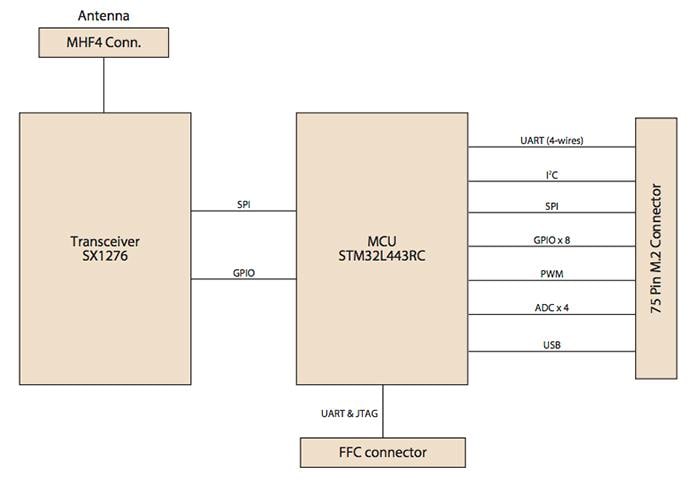

Block Diagram
Development Tool
