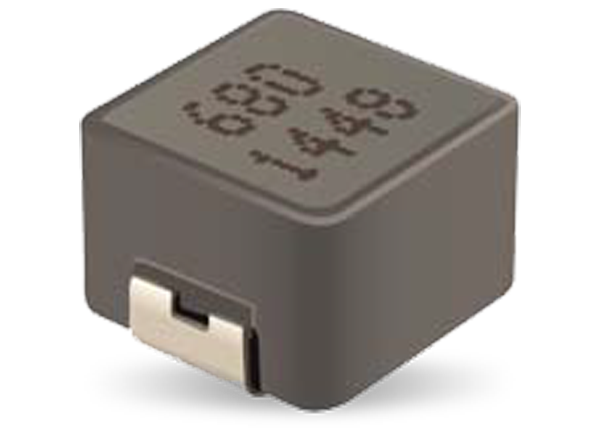

Bourns SRP7050TA Shielded Power Inductors

Bourns SRP7050TA Shielded Power Inductors offer a shielded construction, a carbonyl powder core, high saturation current in a 0.33µH to 68μH inductance range. The SRP7050TA components are AEC-Q200 qualified, RoHS compliant, and halogen-free. Applications include automotive systems, DC/DC converters, and power supplies.


  • Shielded construction
  • Carbonyl powder core
  • High saturation current
  • Inductance range from 0.33 to 68μH
  • AEC-Q200 qualified
  • Halogen-free and RoHS compliant


  • Automotive systems
    • Driver assistant
    • Information
    • Entertainment
    • Lighting
  • DC/DC converters
  • Power supplies


  • 0.33µH to 68µH inductance range at 100KHz, 1V
  • ±20% inductance tolerance at 100KHz, 1V
  • 10 or 15 Q minimum at 100KHz, 1V
  • 6MHz to 100MHz typical self-resonant frequency range
  • 1.2A to 25A maximum DC current range
  • DCR ranges
    • 2.5mΩ to 386mΩ typical
    • 3mΩ to 445mΩ maximum
  • 2A to 32A saturation current range
  • Lead frame terminal type
  • -55°C to +150°C temperature range
  • Moisture Sensitivity Level (MSL) 1
  • Materials
    • Carbonyl powder core
    • Enameled copper wire
    • Sn terminal finish
