DFRobot DFR0579 Solar Power Manager Micro
DFRobot DFR0579 Solar Power Manager Micro is a micro-power, high-efficiency solar power management module. This development tool is designed to power IoT-based wireless sensors or controllers with 1V~3V small-size solar panels. The DFR0579 development tool can maximize solar energy's conversion efficiency under weak sunlight. These features allow low-power wireless devices to be charge-free and battery replacement-free by pure solar power. This power management module employs a constant voltage ratio Maximum Power Point Tracking (MPPT) algorithm to maximize the output power of the solar panel under various sunlight. Applications include a wireless sensor network, BLUETOOTH® iBeacon, and solar-powered toys.
Features
- Constant voltage ratio MPPT algorithm, maximizing solar power conversion
- Designed for 1V~3V small solar panels, ultra-low power design
- Other features for solar panel 2V 160mA
- Waterproof
- Oil resistant
- Corrosion resistant
- Solar/USB two charging methods
- Multiple protections extending battery life
Specifications
- Micro-solar power management module
- SPV1050 solar power management IC
- 0.5V~4V Solar Input voltage (SOLAR IN)
- 3.7V lithium battery Battery Input (BAT IN)
- 100mA @ USB IN, 70mA @ SOLAR IN charge current
- 4.2V over-charge protection threshold
- 3.1V over-discharge protection threshold
- 3.3V 90mA @ BAT IN 3.7V regulated power supply
- Less than 3μA operating current
- Protection Functions
- BAT IN: Over-discharge/over-charge/reverse connection protections
- OUT: Short circuit/over current protections
- 30mm x 30mm dimensions
- Solar Panel 2V 160mA
- 2V Nominal Voltage (VMP)
- 160mA Nominal Current (IMP)
- 2.4V Open Circuit Voltage (IOC)
- 190mA Short Circuit Current (ISC)
- Monocrystalline silicon solar cell material
- 50mm x 50mm dimensions
Applications
- Wireless sensor network
- Bluetooth iBeacon
- Solar powered toys

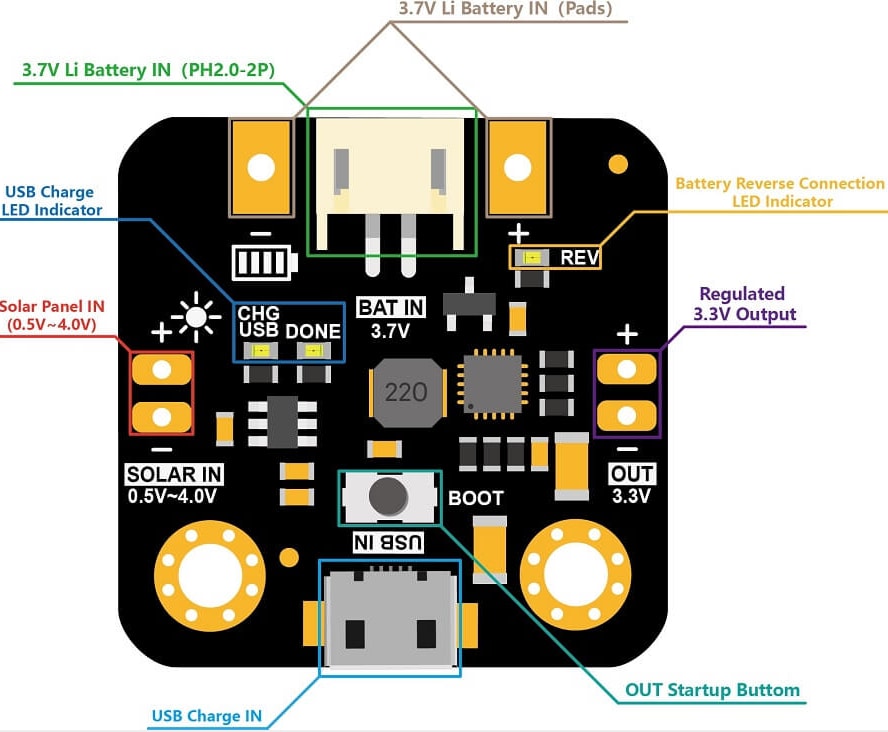

DFR0579 Board Overview
Additional Resources
