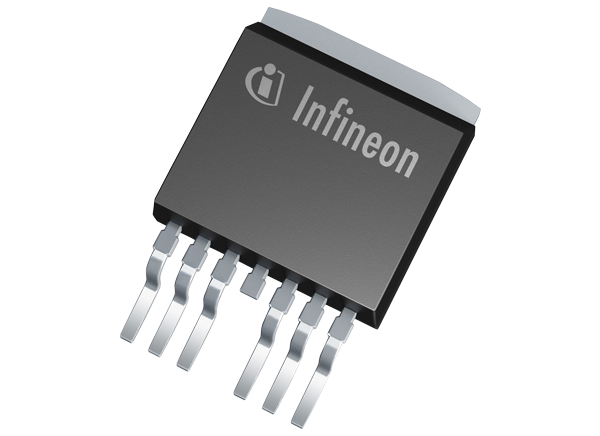

Infineon NovalithIC™ high current motor drivers pair a p-channel high-side switch and a n-channel low-side switch to create a half-bridge, adding an integrated circuit to protect the device. The IC also features microprocessor-compatible logic level inputs, diagnosis with current sense, slew rate adjustment and dead-time generation. Overtemperature, overvoltage, undervoltage, overcurrent and short-circuit protection is part of the package. Two hallmark features set this multichip, half-bridge configuration apart - it generates neither charge pump emissions nor cross-current. The half-bridge combines with others to form H-bridge and three-phase drive configurations.

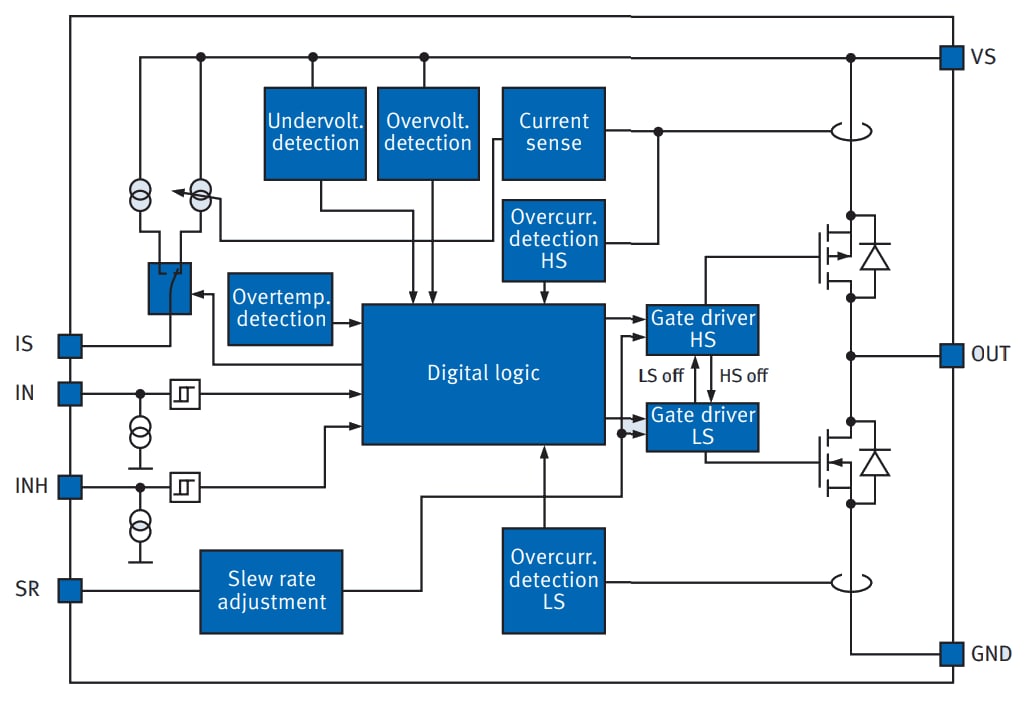

Low path resistance down to 16mOhm and high-current capability up to 70A typical
Low quiescent current of 7μA
PWM capability up to 25kHz + active freewheeling
Switched-mode current limitation
Logic level inputs
Integrated over-/undervoltage, overtemperature, and overcurrent protection
Status flag diagnosis
Analog current sense
Adjustable slew rate
Fast switching speed, rise, and fall times of 500ns
Automation and Control
Infineon Technologies Blindage de commande moteur CC DCSHIELDBTN9970LVTOBO1
Idéalement conçu pour permettre et prendre en charge l'évaluation de la famille NovalithIC+™.
