JAE Electronics AX01 & AX03 Floating Board-to-Board Connectors

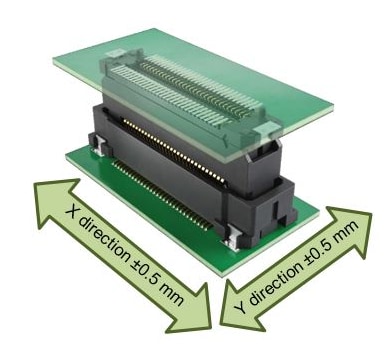

JAE Electronics AX01 and AX03 Series Floating Board-to-Board Connectors are designed to be compatible with 8Gbps+ high-speed transmission (10GBASE-KR and PCIe Gen3). These connectors feature a floating tolerance of ±0.5mm in both X and Y directions and can absorb positional shifts/misalignments during mounting and assembly. A two-point contact structure allows for a highly reliable connection while providing countermeasures against foreign objects and mounting flux. The AX01 offers mezzanine and right-angle board orientation, and the AX03 connector features a coplanar orientation. JAE Electronics AX01 and AX03 Series Floating Board-to-Board Connectors are ideal for internal connections of industrial equipment such as robots, automated machines, and machine tools.
