Keysight Technologies Current Probes

Keysight Technologies Current Probes offer accurate and reliable solutions for measuring DC and AC currents. Keysight clamp-on current probes feature hybrid technology to measure AC and DC and offer up to 150MHz bandwidth and 500A_rms current measurement range. High-sensitivity current probes from Keysight measure AC-DC currents as low as 50μA and are ideal for capturing and analyzing low-level current flow in the device under test (DUT). Rogowski coil current probes feature an easy-to-use clip-around coil that enables current measurement in confined spaces.

Features

Clamp-on current probes
- Up to 150MHz bandwidth and 500A_RMS current measurement range
  - N2780B 2MHz current probe
  - N2781B 10MHz current probe
  - N2782B 50MHz current probe
  - N2783B 100MHz current probe
  - N2893A 100MHz current probe with AutoProbe interface
  - N7026A 150MHz high-sensitivity current probe with AutoProbe interface
- Hybrid technology to measure AC and DC
- Compatible with 1MΩ scope input
High-sensitivity current probes
- Measures AC/DC currents as low as 50μA
  - N2820A high-sensitivity 2-channel current probe
  - N2821A high-sensitivity 1-channel current probe
- Ideal for capturing and analyzing low-level current flow in the DUT to characterize sub-circuits or measure current consumption of battery-powered devices or ICs

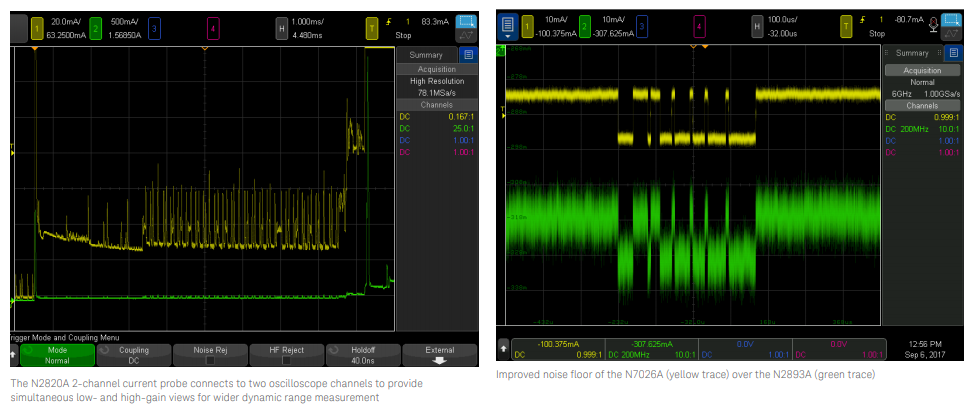

- Simultaneous high- and low-gain views of the current waveform for more precise wide dynamic range measurement

Rogowski coil current probes
- Easy-to-use clip-around coil enabling current measurement in confined space
- Measures AC current up to 3000A_PK (N7040A)
- Up to 30MHz bandwidth (N7041A / N7042A)
