Mikroe MIKROE-3329 Temp-Log 4 Click
Mikroe MIKROE-3329 Temp-Log 4 Click features the accurate SE97B temperature sensor IC with 256b of integrated EEPROM. This Mikroe SE97B sensor IC can store auxiliary data without additional EEPROM and simplifies the design by reducing the number of components.
The SE97B sensor IC is designed for DRAM Dual In-line Memory Modules (DIMMs), incorporating the Serial Presence Detect (SPD) feature. The EEPROM can be used for different tasks, including recording temperature peaks, storage of event alerts, and others. The MIKROE-3329 Temp-Log 4 click is ideal for developing various embedded applications based on temperature measurement and data logging.
Features
- SE97B temperature sensor IC with integrated EEPROM from NXP
- Very high measurement accuracy and repeatability
- Programmable thresholds and hysteresis
- Dedicated EVENT pin with a programmable function
- Selectable resolution
- 256b of integrated EEPROM
- I2C interface
- 3.3V or 5V input voltage
- 42.9mm x 25.4mm click board size
Applications
- Embedded applications based on temperature measurement and data logging

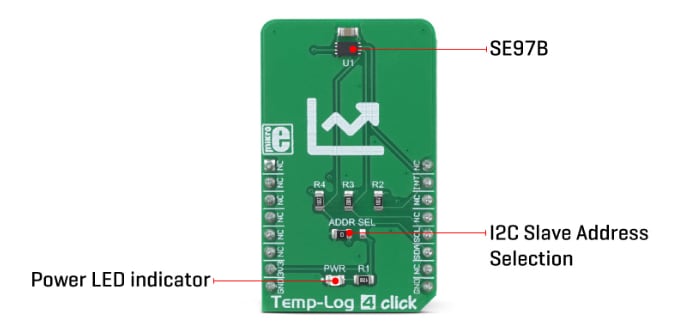

Temp-Log 4 Click Board Overview
