Mini-Circuits LDPO-33-53+ Ceramic Diplexer

Mini-Circuits LDPO-33-53+ Ceramic Diplexer is a tiny surface-mount diplexer with a low-pass channel from DC to 3000MHz and a high-pass channel from 5000MHz to 5750MHz. This model provides low passband insertion loss, high-stopband rejection, and RF input power handling up to 3W. The LDPO-33-53+ diplexer is fabricated using LTCC technology and the unit comes housed in a tiny 0402 ceramic package. This diplexer holds excellent thermal stability and is designed to operate from -55°C to 125°C temperature range. The LDPO-33-53+ ceramic diplexer is ideally used in ISM band, Wi-Fi, Bluetooth®, and cellular applications.

Features

  • Low insertion loss
  • High stopband isolation
  • Low cost
  • Low-pass channel from DC to 3000MHz
  • High-pass channel from 5000MHz to 5750MHz
  • Aqueous washable
  • Wrap-around terminations
  • Miniature size 0402 package
  • Good thermal stability
  • Operates from -55°C to 125°C temperature range
  • 3W RF power input
  • RoHS compliant

Applications

  • ISM band
  • Wi-Fi
  • Bluetooth®
  • Cellular

Block Diagram

Block Diagram - Mini-Circuits LDPO-33-53+ Ceramic Diplexer

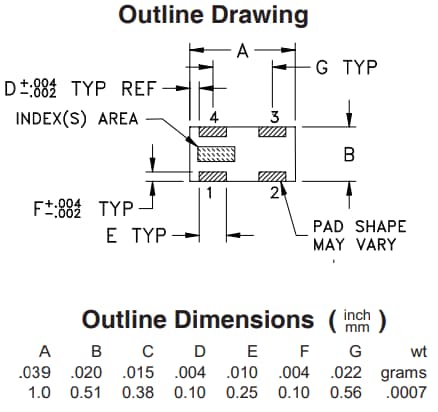

Mechanical Drawing

Mechanical Drawing - Mini-Circuits LDPO-33-53+ Ceramic Diplexer
