Mini-Circuits ZVA Series Wideband Amplifiers

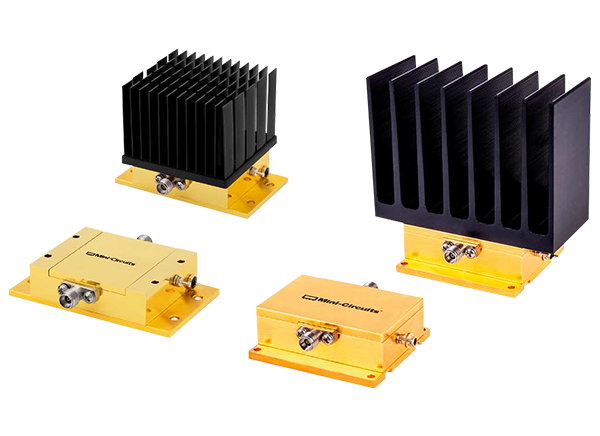

Mini-Circuits ZVA Series Wideband Amplifiers are coaxial, medium power, high-frequency, and high gain amplifiers. These amplifiers can operate from a range of 2GHz to 95GHz frequency range. The ZVA-71863HP+ and ZVA-71863LNX+ operate from 71 to 86 GHz, and the ZVA-50953G+ operates from 50GHz to 95GHz. The ZVA-02303HP+ operates from 2GHz to 30GHz, and the ZVA-0.5W303G+ operates from 10MHz to 30GHz. These devices operate over a positive supply range of +10V to +15V, allowing users to choose the desired operating voltage.
Features
- ZVA-0.5W303G+ and ZVA-0.5W303GX+
- Wideband 10MHz to 30GHz
- 0.5W output power at saturation
- Excellent gain flatness, ±1.5dB from 100MHz to 26.5GHz (typical)
- Low noise figure, 4.2dB from 1 to 26.5GHz (typical)
- DC Protections:
• Over-voltage
• Reverse voltage
- ZVA-02303HP+ and ZVA-02303HPX+
- High gain of 38dB (typical)
- ±1dB excellent gain flatness (typical)
- +28dBm saturated output power (typical)
- Available with and without a heatsink
- Operates with a single DC supply of +12V to +15V
- DC Protections:
• Over-voltage
• Reverse voltage
• In-rush current
- ZVA-50953G+ and ZVA50953GX+
- Exceptionally high frequency
- ±2.0dB (typ.) flat gain response
- +21 dBm (typ.) high Psat
- +10V To +15V wide DC operating voltage
- Over voltage and reverse voltage protected
- 1mm coaxial connectors
- ZVA-50953X+
- Exceptional high frequency
- A flat gain response over a wideband
- Operates with a single DC supply of +10V to +15V
- Over voltage and reverse voltage protected
- ZVA-71863HP+ and ZVA-71863HPX+
- High gain 38 dB typ. over the entire operating band
- Excellent gain flatness, ±1.5 dB (typ.)
- 24 dBm (typ.) high Psat
- Adjustable DC voltage, +10V to +15V
- ZVA-71863LNX+
- 37 dB (typ.) high gain
- Excellent gain flatness, ±1.75dB (typ.)
- 4.5dB (typ.) from 71 to 81 GHz low noise figure
- Adjustable single supply voltage, +10V to +15V
Applications
- ZVA-0.5W303G+ and ZVA-0.5W303GX+
- 5G Sub-6 GHz, 5G mmWave
- L, S, X, and Ku band radars and satellite systems
- ELINT and SIGINT systems
- ZVA-02303HP+ and ZVA-02303HPX+
- Wideband test and instrumentation
- 5G
- SATCOM
- EW
- ZVA-50953G+ and ZVA-50953GX+
- Automotive radar testing
- 5G-FR2 millimeter wave testing
- Aerospace and defense
- Test and measurement
- E-Band backhaul
- ZVA-50953+
- Automotive radar/sensing
- 5G FR2 millimeter wave bands
- Aerospace and defense
- Test and measurement
- ZVA-71863HP+ and ZVA-71863HPX
- Automotive tests
- Radar/sensing
- 5G FR2+ bands (E-band)
- SATCOM
- Wireless infrastructure
- Imaging
- ZVA-71863LNX+
- Automotive test
- Radar/sensing
- 5G FR2+ bands (E-band)
- SATCOM E-band
- Wireless infrastructure
