Monolithic Power Systems (MPS) MPQ4242B-AEC1 Fully Integrated Power Delivery IC
Monolithic Power Systems (MPS) MPQ4242B-AEC1 Fully Integrated Power Delivery (PD) IC is a solution for USB Type-C® sourcing ports. It integrates a buck-boost converter with four power switches and a USB PD controller. Under a certain input supply range, the device supports up to 5A continuous output current (IOUT).
The MPQ4242B-AEC1's USB Type-C port supports USB PD revision 3.1 with a programmable power supply (PPS). It is backward compatible with dedicated charging port (DCP) schemes for battery charging specification (BC1.2), 3A divider mode, and a 1.2V/1.2V mode. The MPQ4242B-AEC1 also supports QC 2.0/3.0 and Huawei fast charge protocol (FCP) mode.
The Monolithic Power Systems (MPS) MPQ4242B-AEC1 provides a configurable PD power management state machine when the battery voltage (VBATT) is low or if an over-temperature (OT) condition occurs. When two MPQ4242B-AEC1s are used as dual PD ports, the internal power-sharing logic can effectively distribute the total power.
Fault condition protections include input/output (I/O) pin short protection for the BUS and VIN pins, CC over-current protection (OCP), current limiting with hiccup mode, output over-voltage protection (OVP), and thermal shutdown. The MPQ4242B-AEC1 requires a minimal number of readily available, standard external components. It is available in a QFN-22 (4mm x 5mm) package and is AEC-Q100 Grade 1 qualified.
Features
- All-in-one USB Power Delivery (PD) solution for automotive sourcing ports
- Integrated 4-switch buck-boost converter
- Integrated PD 3.1 controller
- Wide 4.8V to 36V operating input voltage (VIN) range
- 3.3V to 22.5V output voltage (VOUT) range
- Accurate output CC current limit of ±5%
- External high-side MOSFET (HS-FET) can be paralleled
- Low quiescent current (IQ) when USB Type-C is disconnected
- 250kHz/420kHz configurable frequency with Spread Spectrum (FSS)
- Supports USB PD R3.1, and PPS with a seven Power Data Object (PDO) list
- Passes USB-IF PD3.1 certification test (TID: 8822)
- Supports QC 3.0 specification, Huawei FCP
- Supports Direct Charging Port (DCP) schemes for BC1.2, 3A divider mode, and 1.2V/1.2V mode
- CCx, DP, and DM are short to VBUS/VBATT protection
- Battery short-to-ground protection driver
- I2C slave interface
- Output line-drop compensation
- Configurable PD power management during low battery voltages or high temperatures
- Supports dual-port PD power sharing
- PWM duty cycle configurable LED driver
- Up to 120 minutes for EN off delay
- Available in a QFN-22 (4mm x 5mm) package with wettable flanks
- Available in AEC-Q100 Grade 1
Applications
- USB PD charging ports
- USB power supplies
- USB PD hubs

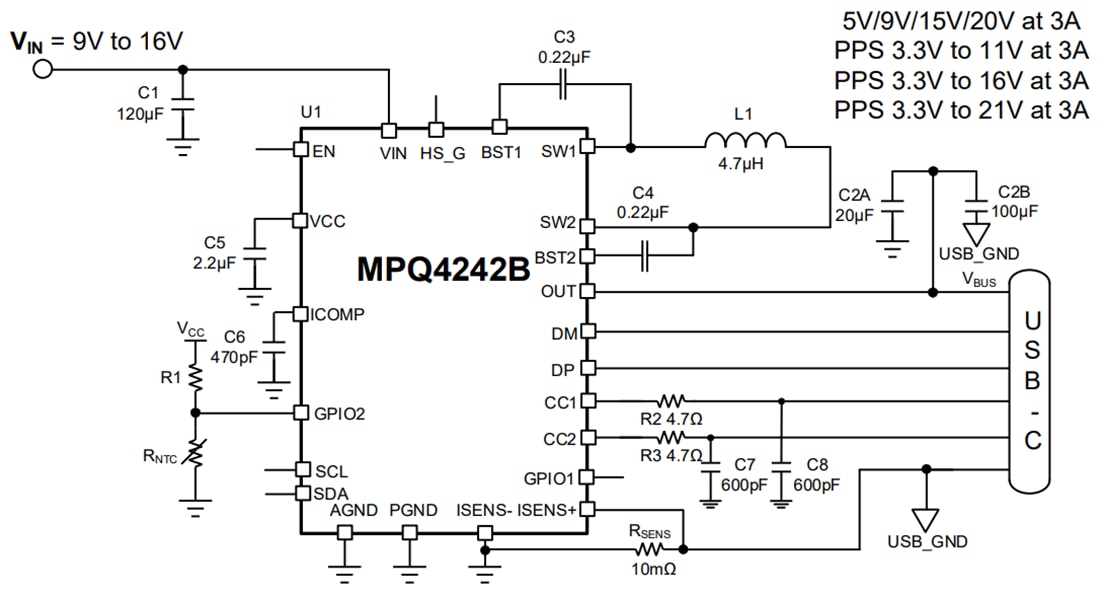

Typical Application
Development Tool
Monolithic Power Systems (MPS) EVQ4242B-VE-00A PD IC Evaluation Board
Demonstrates the MPQ4242B-AEC1, a fully integrated PD solution for USB Type-C® sourcing ports.
