Nexperia BATxxGW Schottky Barrier Diodes

Nexperia BATxxGW Schottky Barrier Diodes are AEC-Q101 qualified and designed with an integrated guard ring for stress protection. The planar Schottky barrier diodes are encapsulated in a SOD123 small SMD plastic package. These BATxxGW Schottky diodes come in two types BAT46GW and BAT54GW. The BAT46GW is designed for high-speed switching, while the BAT54GW is designed for ultra-high speed switching. These diodes also consist of two variants BATxxGWJ and BATxxGWX which feature low capacitance and a small SMD plastic package. Typical applications include line termination and automotive applications.

Features

  • Low forward voltage
  • Low leakage current
  • Reverse voltage
  • Low capacitance
  • Small SMD plastic package
  • AEC-Q101 qualified

Applications

  • Line termination
  • Automotive applications
  • Voltage Clamping
  • Reverse polarity protection

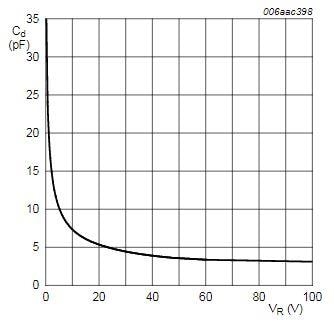

Diode capacitance as a function of reverse voltage:

Nexperia BATxxGW Schottky Barrier Diodes
View Results ( 4 ) Page
Numéro de pièce Fiche technique Description
BAT54GWJ BAT54GWJ Fiche technique Diodes et redresseurs Schottky The factory is currently not accepting orders for this product.
BAT46GWJ BAT46GWJ Fiche technique Diodes et redresseurs Schottky The factory is currently not accepting orders for this product.
BAT46GWX BAT46GWX Fiche technique Diodes et redresseurs Schottky RECT 100V .25A SM SC HOTTKY
BAT54GWX BAT54GWX Fiche technique Diodes et redresseurs Schottky RECT 30V .2A SM SCHO TTKY
