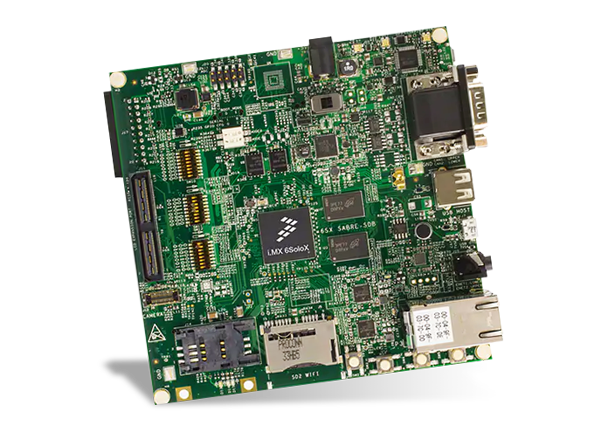

NXP Semiconductors MCIMX6SX-SDB SABRE Development Board
NXP Semiconductors MCIMX6SX-SDB SABRE (Smart Application Blueprint for Rapid Engineering) Board introduces developers to multi-core processing, low-power consumption, and leading-edge multimedia and graphics applications based on the i.MX 6SoloX Applications Processor. The MCIMX6SX-SDB SABRE Board provides a low-cost development platform that includes all primary features of the i.MX 6SoloX serves as an example of how to layout complex, high-speed interfaces such as DDR. NXP Semiconductors SABRE includes a pre-installed SD card with the Linux operating system and complete hardware design files. A number of accessory boards for the SABRE-SDB are also available to provide additional capabilities such as multi-touch display and Wi-Fi® connectivity.
Features
- i.MX 6SoloX 1GHz processor based on the Arm Cortex-A9 core and 227MHz Cortex-M4 core
- Development for i.MX 6SoloX
- Memory/Storage
- 1GB DDR3L SDRAM up to 400MHz
- 2x 32MB QSPI NOR flash
- Display
- LVDS connector
- LCD expansion connector (parallel, 24-bit)
- User Interface
- Buttons: Power (sw3), Reset (sw2), Function1, Function2
- Switch: power
- Power Management: NXP MMPF0200 PMIC
- Audio
- Audio codec
- Microphone and headphone jacks
- Board-mounted microphone
- Expansion Connector
- Parallel camera MIPI CSI port
- I2C and signals
- Connectivity
- Full-size SD/MMC card slots (3x)
- Two gigabit Ethernet connectors
- 1x USB 2.0 OTG port (micro USB)
- mPCIe connector
- 12-bit ADC connector
- 2x CAN (DB-9) using MC34901 CAN transceiver
- Debug
- JTAG connector (20-pin)
- 1x Serial-to-USB connector (for JTAG)
- OS Support
- Linux, Android, MQX™ RTOS for ArmM Cortex-M4
- Others supported via third party (QNX, Windows Embedded)
- Tools Support
- Manufacturing tool
- Processor Expert IOMUX tool
- Additional Features
- NXP MMA8451 three-axis accelerometer
- Ambient light sensor

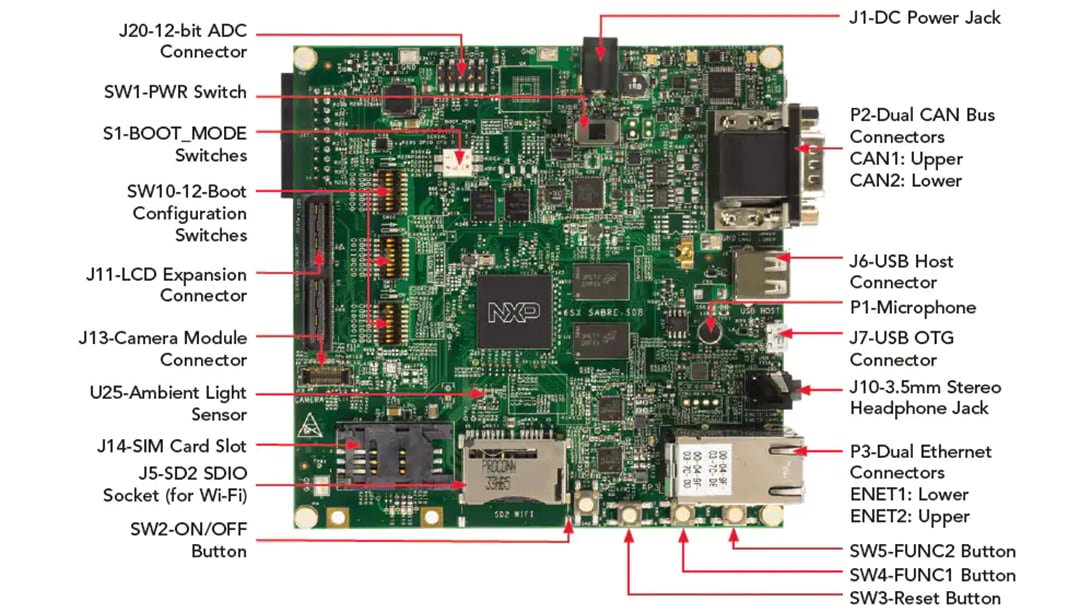

Board Layout (Top)

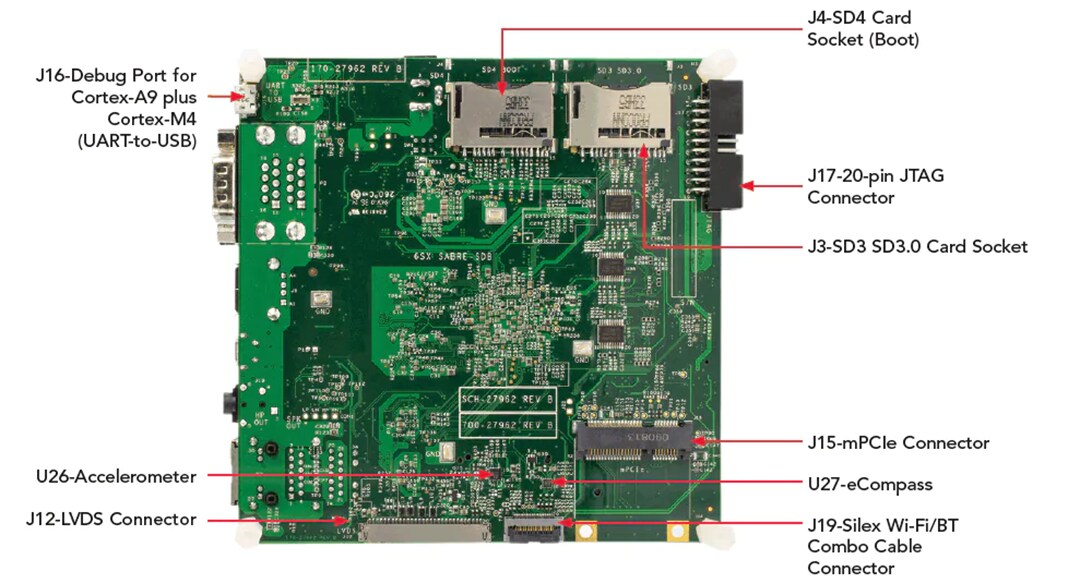

Board Layout (Bottom)
Additional Resources

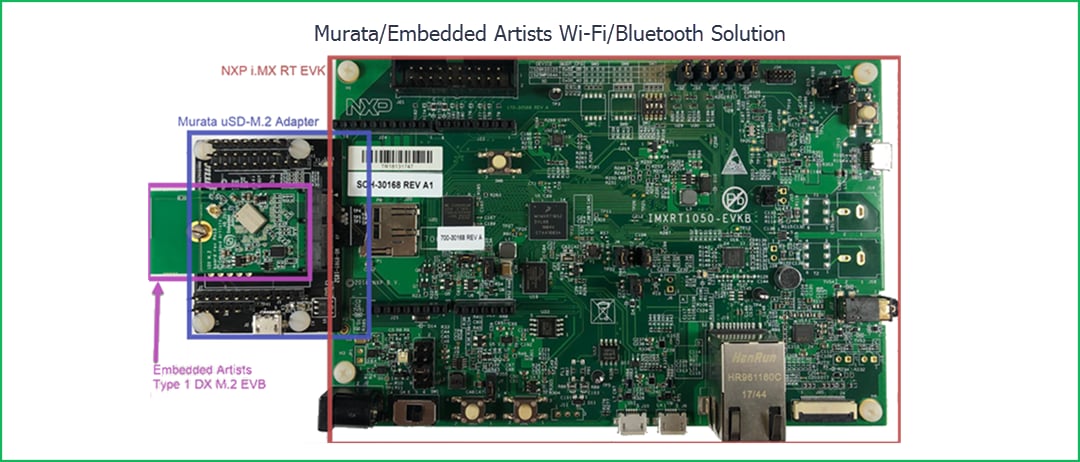

Wi-Fi/Bluetooth Solution
Murata has partnered with Embedded Artists to integrate Wi-Fi® and Bluetooth® into existing NXP i.MX Development Platforms. The i.MX Platforms, based on the Arm® Cortex® cores, are designed to bridge the gap between the performance of Applications Processors and the flexible usability of Microcontrollers (MCUs) without increasing costs or power consumption.
The Murata uSD-M.2 Adapter connects to the uSD slot on the NXP i.MX Platforms, which provides power and WLAN-SDIO. The Murata Adapter provides an M.2 connector, allowing application developers to connect the Embedded Artists Types 1DX, 1MW, 1LV, and 1CX M.2 EVBs, which provide IEEE 802.11/b/g/n and BT/BLE connectivity.
Learn More About the Murata/Embedded Artists Wi-Fi/BT Solution for NXP i.MX Eval Platforms
