Panasonic EVP-BL Tactile Switches
Panasonic EVP-BL Tactile Switches offer a long mechanical life of 300,000 cycles for the 0.7N operation force type. These tactile switches feature low profile heights ranging from 0.53mm to 0.60mm, and compact dimensions of 2.8mm x 1.9mm. EVP-BL switches have an IP67 protection rating and are equipped with an actuator, ensuring high operability. Panasonic EVP-BL Tactile Switches are operation switches designed for portable electronic equipment, including mobile phones and portable audio.
Features
- Low-profile design
- Compact
- High operability
- Equipped with an actuator
Applications
- Portable electronic equipment
- Mobile phones
- Portable audio
Specifications
- 0.53mm to 0.60mm profile height range
- 2.8mm x 1.9mm dimensions
- IP67 protection rating
- 500mΩ maximum contact resistance
- 300,000 cycles of operating life
- -40°C to +85°C operating temperature range

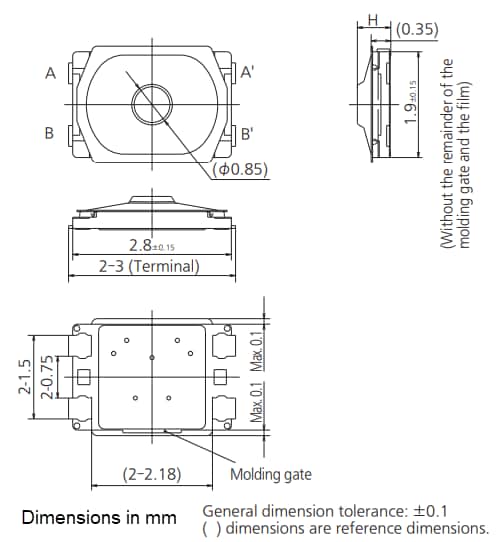

External Dimensions
