Renesas Electronics 48V Position Control Solution
Renesas Electronics 48V Position Control Solutions for BLDC motor applications are smaller in size and provide high efficiency, meeting the increasingly rapid demand. The core of a BLDC motor design is a robust and reliable motor control circuit and a versatile MCU allowing for a safe control algorithm. Key building blocks of a motor control circuit include a MOSFET driver, versatile MCU, voltage regulators, a cell balancer, and the battery charger.
Features
- Integrated 12-bit analog-to-digital converter (ADC) with op amp and comparator
- High-accuracy cell balancer and monitor with customer-programmable EEPROM
- Ultra-low power MCU
- 4µs high-speed wake-up time
Applications
- Factory automation
- Robotics

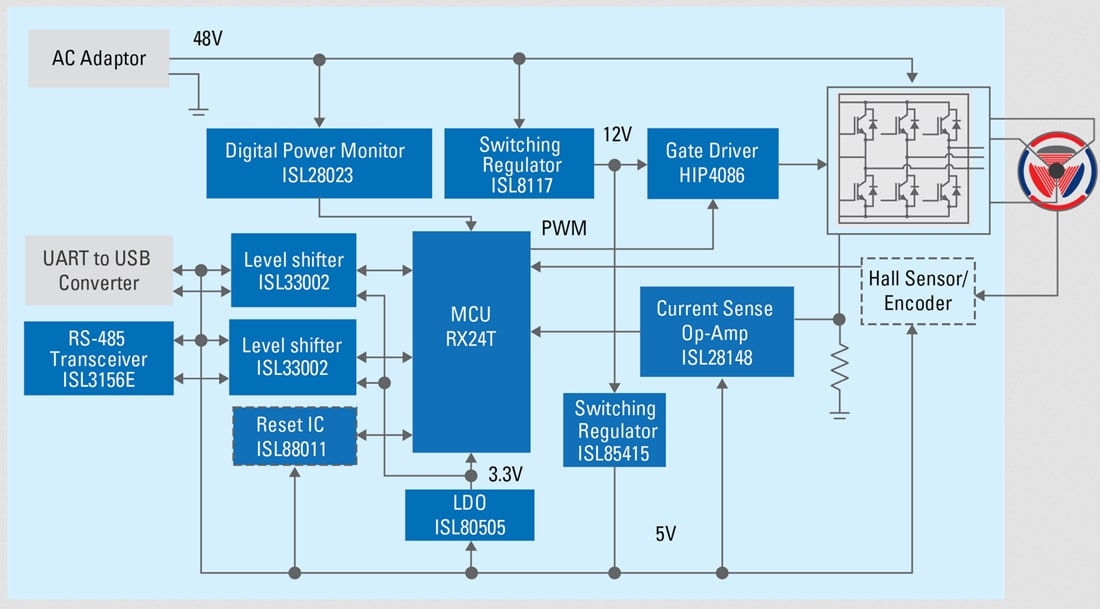

System Block Diagram
Related Products
Renesas Electronics HIP4086A 3-Phase MOSFET Drivers
For PWM motor control, and a flexible input protocol for driving every possible switch combination.
Renesas Electronics ISL28023 Precision Digital Power Monitors
Bidirectional high/low side digital current sense & voltage monitor w/serial interface.
Renesas Electronics ISL3300x I2C Bus Buffers
Provides the buffering necessary to extend the bus capacitance beyond the 400pF maximum.
Renesas Electronics ISL315xE RS-485/RS-422 Differential Transceivers
Features high output drive and high ESD protection and includes half and full-duplex transceivers.
Renesas Electronics ISL80505 & ISL80510 LDO Voltage Regulators
Single output Low Dropout voltage regulators with a programmable 0.8V to 5.5V output voltage.
Renesas Electronics Contrôleurs abaisseurs PWM synchrones ISL8117
Des contrôleurs buck synchrones qui génèrent des rails de tension POL et des rails de tension de polarisation.
Renesas Electronics ISL85415 Switching Regulator
Wide voltage input range, 500mA output current provides a flexible and dependable design solution.
Renesas Electronics ISL8801x 5 Ld Voltage Supervisors
Offers both fixed and adjustable voltage-monitoring and functions in a small 5 Ld SOT-23 package.
Renesas Electronics RX200 32-Bit Microcontrollers
32-bit MCUs designed to strike a balance between power efficiency and high performance.
