ROHM Semiconductor SML-Z14x/ZN4x LEDs

ROHM Semiconductor SML-Z14x/ZN4x LEDs are high-brightness LEDs housed in a PLCC-2 package. These LEDs offer a forward voltage of  20mA and 50mA. The SML-Z14x/ZN4x LEDs are constructed using an InGaN chip structure and a water-clear lens. These LEDs are available in green and blue variants with luminous intensity ratings of 1.1cd and 300mcd. The LEDs operate from the -40°C to 100°C temperature range and support the -40°C to 100°C storage temperature range.

Features

  • Z14x
    • High brightness
    • 20/50mA guaranteed specifications
    • PLCC-2 package
    • Green illumination color
    • 528nm wavelength temperature
    • 1.1cd luminous intensity
    • 20mA forward current
    • 3.4V forward voltage
    • 3.5mm x 1.9mm x 2.8mm dimensions
  • ZNx
    • High brightness
    • 20/50mA guaranteed specifications
    • PLCC-2 package
    • Blue illumination color
    • 470nm wavelength temperature
    • 300mcd luminous intensity
    • 20mA forward current
    • 3.3V forward voltage
    • 3.5mm x 1.9mm x 2.8mm dimensions

SML-Z14x/ZN4x LEDs Dimensions

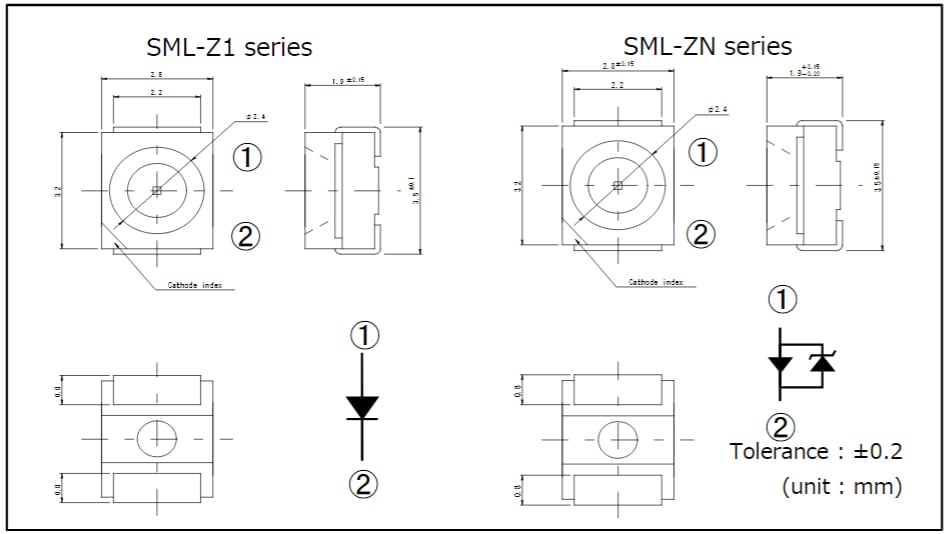

Mechanical Drawing - ROHM Semiconductor SML-Z14x/ZN4x LEDs
