Seeed Studio reComputer Mini J501 Carrier Boards

Seeed Studio reComputer Mini J501 Carrier Boards are ultra-compact carrier boards for NVIDIA® Jetson AGX Orin™ modules, both 32GB and 64GB. It features rich IOs, including CAN, USB, Ethernet, RS-485, I2S, and a GMSL extension (100020039 only), making it a perfect candidate for a humanoid controller and rapid prototyping. With Jetson AGX Orin modules, the Seeed Studio reComputer Mini 501 carrier boards are a perfect alternative option for the NVIDIA Jetson AGX Orin Developer Kit.

Features

  • Jetson AGX Orin 32/64GB
  • High-performance AI computing with up to 275 TOPS
  • Wide -10℃ to +60℃ operating temperature range (with thermal grease)
  • Extensive connectivity
    • Two USB 3.2
    • One USB 3.0 Type-C (recovery)
    • One USB 2.0 Type-C (debug)
  • Industrial alternative for AGX Orin dev kit
  • Vision AI support with expansion for up to eight GMSL cameras (100020039 only)
  • RJ-45 with 1GbE and 10GbE
  • Two robot connections with CAN RS-485
  • M.2 Key E for Wi-Fi® and BLUETOOTH®
  • I2S serial interface
  • 110mm x 110mm ultra compact size
  • Jetpack 6 supported
  • 19VDC to 48VDC power supply range
  • Powerful embodied AI platform

Applications

  • Humanoid robots
  • AI robot development
  • Multi-sensor fusion for autonomous mapping and navigation
  • Gaming
  • Capable of bringing generative AI to the Edge
  • Deploy Depth Anything v3

Specifications

  • One M.2 Key M slot for storage
  • One M.2 Key E slot for Wi-Fi/Bluetooth module networking
  • I/O
    • USB
      • Two USB 3.2 Type-A (10Gbps)
      • One USB 3.0 Type-C (recovery)
      • One USB 2.0 Type-C (debug)
    • RJ45
      • One 1G Ethernet
      • One 10G Ethernet
    • Eight GMSL2 (MAX96712 as deserializer) (100020039 only)
    • Two CAN (CAN-FD supported)
    • One RS-485
    • One I2S
    • Four DI and four DO (DO can be configured as a UART)
    • HDMI 2.1 display
    • One 4-pin fan connector (12V PWM)
    • One reset button and one recovery button
    • One 2-pin real-time clock (RTC)
  • One XT30 power connector (19VDC to 48VDC)
  • Mechanical
    • 110mm x 110mm x 38mm (WxDxH) dimensions
    • 90g weight
    • Desk, wall-mounting installation
  • Operating Temperature
    • -10°C to +60°C (with thermal grease)
    • -10°C to +55°C (with thermal pad)
  • Two-year warranty

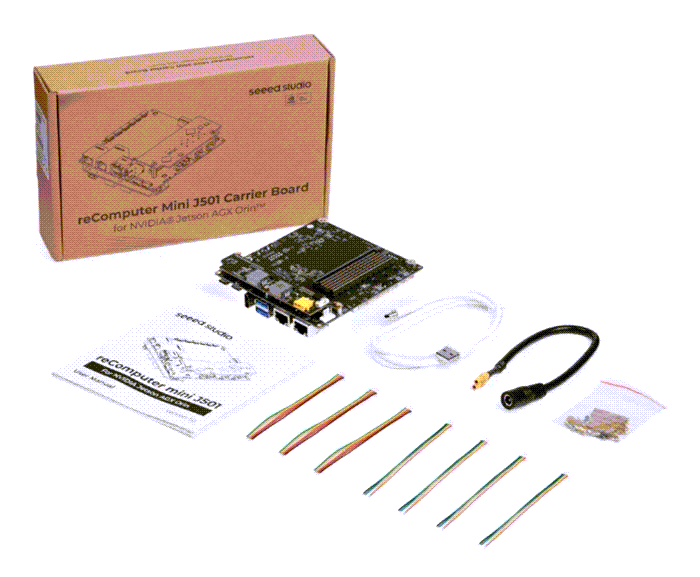

Kit Contents

  • One Seeed carrier board (reComputer Mini J501)
  • One GMSL extension board (100020039 only)
  • One power board
  • One XT30 to DC power cable
  • One USB Type-C® to Type-A cable
  • Three GH-1.25 4-pin 100mm JST cables
  • Three GH-1.25 6-pin 100mm JST cables
Mechanical Drawing - Seeed Studio reComputer Mini J501 Carrier Boards

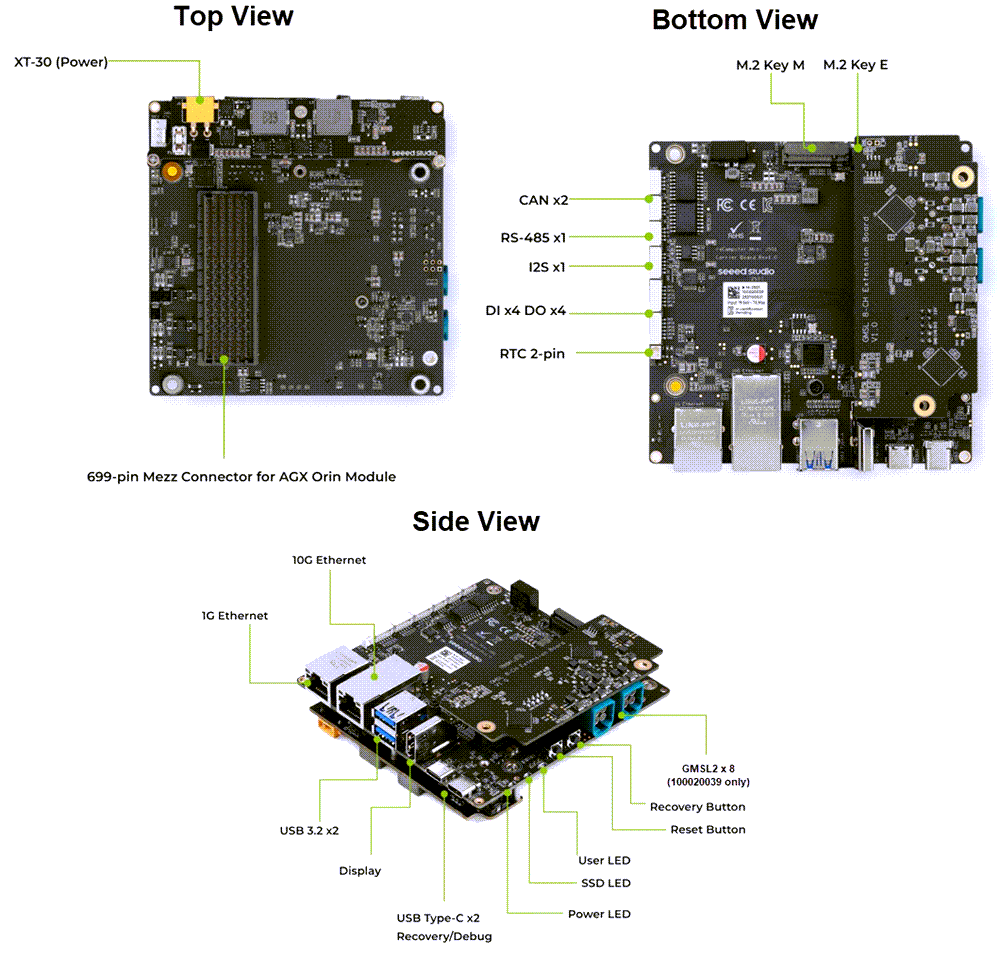

Board Features

Mechanical Drawing - Seeed Studio reComputer Mini J501 Carrier Boards
