Semtech ESD Solutions for USB 3.0

Semtech ESD Solutions for USB 3.0 safeguard high-speed 3.0 data lines from frequent threats like ESD, EFT, and Cable Discharge events. USB 3.0 ICs require state-of-the-art transient voltage suppression (TVS) protection solutions. These Semtech solutions can arrest dangerous fast rise-time transient threats while also presenting sufficiently low junction capacitance to not adversely impact signal integrity.

Features

  • RClamp3521P
    • Transient protection for data lines to
    • IEC 61000-4-2 (ESD) ±17kV (air), ±12kV (contact)
    • IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
    • Cable discharge event (CDE)
    • Ultrasmall package (1x0.6x0.5mm)
    • Protects one data or I/O line
    • 0.40pF capacitance
    • 0.47Ω typical dynamic resistance
    • Low ESD clamping voltage
    • 3.5V operating voltage
    • Solid-state silicon-avalanche technology
  • RClamp 3324P
    • 3.3V working voltage
    • Protects four lines
    • ±17kV Contact/±20kV Air
    • 0.15Ω dynamic resistance
    • 0.65pF I/O to I/O capacitance
    • Flow-through package(2.5x1.0x0.60mm)
  • RClamp3331ZA
    • ±18kV (Contact/Air) ESD withstand voltage per IEC 61000-4-2
    • Able to withstand over 1000 ESD strikes per IEC 61000-4-2 Level 4
    • Ultrasmall 0201 package
    • Protects one high-speed data line
    • ±3.3V working voltage
    • 0.35pF typical capacitance
    • 0.20Ω (typical) dynamic resistance
    • Low ESD clamping voltage
    • Solid-state silicon-avalanche technology
  • RClamp 3346P
    • 3.3V working voltage
    • Protects six lines
    • ±17kV Contact/±20kV Air
    • 0.15Ω dynamic resistance
    • 0.65pF I/O to I/O capacitance
    • Flow-through package (2.7x0.8x0.50mm)
  • RClamp 3552T
    • 3.5V working voltage
    • Protects two lines
    • ±17kV Contact/±20kV Air
    • 0.3Ω dynamic resistance
    • 0.4pF I/O to I/O capacitance
    • Flow-through package (1.0x0.6x0.50mm)
  • RClamp0561Z
    • High ESD withstand voltage
    • IEC 61000-4-2 (ESD) 15kV (air), 12kV (contact)
    • 0.12pF typical capacitance
    • Very small PCB area
    • Protects one high-speed data line
    • 5.5V working voltage
    • 50nA max reverse leakage current at VR=5.5V
    • 0.15dB (typical) insertion loss at 5GHz
    • 17.5GHz operating bandwidth
    • Solid-state silicon-avalanche technology
  • RClamp7524T
    • ESD protection for high-speed data lines to IEC 61000-4-2 (ESD) ±30kV (air), ±25kV (contact) IEC 61000-4-5 (Lightning) 5A (8/20μs)
    • IEC 61000-4-4 (EFT) 40A (5/50ns)
    • Package design optimized for high-speed lines
    • Flow-through design
    • Protects four high-speed lines
    • 0.60pF maximum (I/O to ground) capacitance
    • Low ESD clamping voltage
    • 0.50Ω (typical) dynamic resistance
    • Solid-state silicon-avalanche technology

Videos

Additional Resources

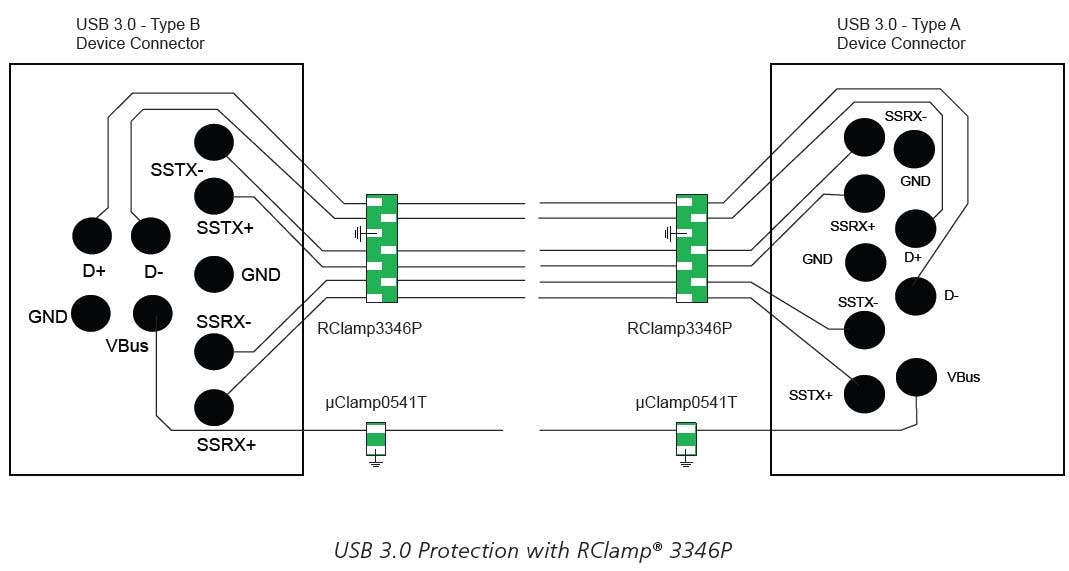

Block Diagram

Block Diagram - Semtech ESD Solutions for USB 3.0
