Sfera Labs Strato Pi CM Duo

Sfera Labs Strato Pi CM Duo is a series of compact industrial servers based on the Raspberry Pi Compute Module designed for professional and industrial applications. These devices are housed in compact two-module DIN rail cases and are available in multiple versions. The Duo 3+ servers come pre-installed with a Raspberry Pi Compute Module 3+ (8GB, 16GB, or 32GB eMMC versions). The Duo Solo servers exclude the Compute Module and offer compatibility with all current versions of the Compute Module: 1, 3, 3 Lite, 3+, and 3+ Lite. Sfera Labs Strato Pi CM Duo features a 9VDC to 28VDC power supply range with surge and reverse polarity protection.

Features

  • All versions compatible with
    • Raspberry Pi Compute Module 1
    • Raspberry Pi Compute Module 3
    • Raspberry Pi Compute Module 3 Lite
    • Raspberry Pi Compute Module 3+ 8GB
    • Raspberry Pi Compute Module 3+ 16GB
    • Raspberry Pi Compute Module 3+ 32GB
    • Raspberry Pi Compute Module 3+ Lite
  • 9VDC to 28VDC power supply with surge and reverse polarity protection and 1.1A resettable fuse
  • Up to 1.9A max continuous current (3A peaks) to the 5V Raspberry Pi Compute Module power supply input pins (at 24VDC)
  • Real-time clock (RTC) with replaceable CR1220 lithium/manganese dioxide backup battery
  • Standard RS-485 interface to the Raspberry Pi serial line, with optoisolator and electrostatic discharge protection
  • 10/100 Ethernet port
  • 2x USB 2.0 Type-A ports with individual power control and fault detection
  • Dual microSD card architecture
  • Hardware watchdog implemented in the Strato Pi CM Duo micro-controller and fully independent from the Raspberry Pi Compute Module
  • Integrated boot loader for the Strato Pi microcontroller, allowing in-field firmware upgrades directly from the Raspberry Pi
  • Embedded Microchip ATECC608A secure element chip
  • Front-panel LEDs for power supply, serial line activity, and 1x GPIO-controlled LED
  • A recessed push-button is hidden behind the front panel and connected to a GPIO pin
  • Power supply and serial connections on the A pluggable terminal block
  • Packaged in a compact two modules DIN rail case

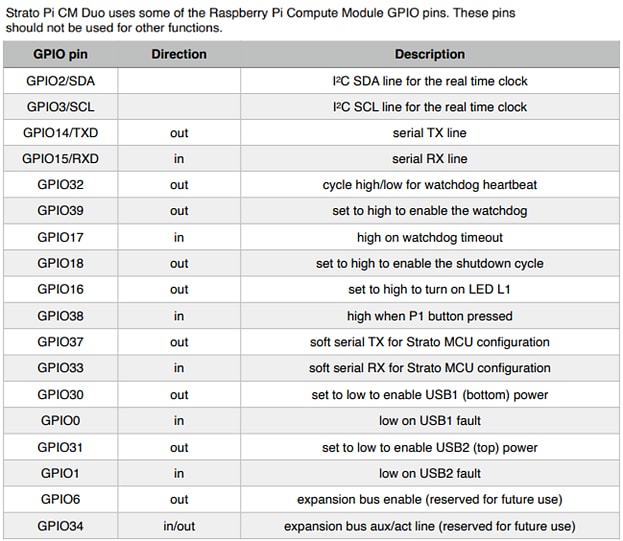

Dedicated GPIO Pins

Sfera Labs Strato Pi CM Duo
