STMicroelectronics Processeur de réseau sans fil à faible énergie BlueNRG Bluetooth®

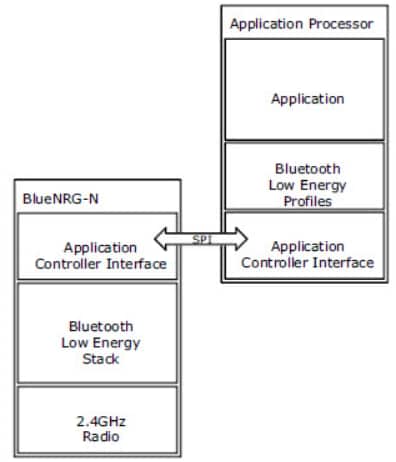

Le processeur réseau sans fil Bluetooth® Low Energy BlueNRG STMicroelectronics est conçu pour permettre des durées d'exécution plus longues et plus réduites, des batteries plus légères dans une large gamme d'« appliccessoires » sans fil, tels que des poignets de gymnastique, des lunettes connectées ou des vêtements interactifs Conforme à la dernière norme Bluetooth 4.0, ce processeur réseau monomode Bluetooth Low Energy (BLE) à très basse consommation dispose de sa propre radio, de son processeur et d'un microprogramme Bluetooth pour faciliter la conception sans fil. La totalité de la pile Bluetooth Low Energy fonctionne sur le cœur intégré Cortex M0. La mémoire Flash non volatile permet une mise à niveau de la pile sur le terrain. Avec un courant de crête de seulement 8,2 mA en mode transmission à 0 dBm et de 7,3 mA en mode récepteur, le BlueNRG offre une gestion d'alimentation économe et des transitions rapides entre les modes de fonctionnement, minimisant ainsi l'alimentation non productive grâce à sa consommation de courant la meilleure de la catégorie. La conception du BlueNRG permet aux applications de respecter les exigences de courant de crête strictes conseillées, imposées par l'utilisation de piles bouton classiques. Les modes veille à ultra basse consommation et les temps de transition très courts entre les modes de fonctionnement permettent une consommation de courant moyen très faible, conduisant à une durée de vie des piles plus longue.

ST Modules for Bluetooth Smart and Bluetooth Classic Technologies

Based on ST's device portfolio and equipped with an onboard antenna, crystal and balun, ST Modules for Bluetooth Smart and Bluetooth Classic Technologies offer a proven, robust, and quick time-to-market solution. The modules come with the embedded Bluetooth stack to provide a BQE end-product qualified solution that is also fully RF, ETSI, IC, and FCC certified. This ensures rapid integration into the final application and offers an easy-to-use solution. The ICs and modules are supported by an extensive set of evaluation boards, software development kits, application notes, and design guidelines to facilitate the adoption of Bluetooth wireless connectivity technology into a wide variety of application segments.

BlueNRG-MS

Bluetooth Low-Energy Network Processor Supporting Bluetooth 4.1 Core Specification

The BlueNRG-MS is a very low-power Bluetooth Low-Energy (BLE) single-mode network processor, compliant with Bluetooth specification v4.1. The BlueNRG-MS supports multiple roles simultaneously and can act at the same time as Bluetooth Smart sensor and hub device.

The Bluetooth Low-Energy stack runs on the embedded Arm® Cortex® M0 core. The stack is stored on the on-chip non-volatile Flash memory and can be easily upgraded via SPI. The device comes pre-programmed with a production-ready stack image (whose version could change at any time without notice). A different or more up-to-date stack image can be downloaded from the ST web site and programmed on the device through the ST provided software tools.

The BlueNRG-MS allows applications to meet the tight advisable peak current requirements imposed with the use of standard coin cell batteries. The maximum peak current is only 10mA at 1dBm of output power. Ultra low-power sleep modes and very short transition times between operating modes allow very low average current consumption, resulting in longer battery life. The BlueNRG-MS offers the option of interfacing with external microcontrollers using the SPI transport layer.

Learn More About BlueNRG-MS BLE Network Processors

BlueNRG-1

Bluetooth Low-Energy System-On-Chip

The BlueNRG-1 is a very low-power BLE single-mode system-on-chip (SOC), compliant with Bluetooth specifications. The BlueNRG-1 extends the features of the award-winning BlueNRG network processor, enabling the usage of the embedded Cortex M0 to run the user's application code.

The BlueNRG-1 includes 160kB of programming Flash memory, 24kB of static RAM memory with retention (two 12kB banks) and SPI, UART, I²C standard communication interface peripherals. It also features multifunction timers, watchdog, RTC, and DMA controller.

An ADC is available to interface with analog sensors and to read the measurement of the integrated battery voltage sensor. A digital filter is available to process a PDM stream.

The BlueNRG-1 offers the same excellent RF performance of the BlueNRG radio, and the integrated high-efficiency DC/DC converter keeps the same ultra-low power characteristics, but the BlueNRG-1 improves the BlueNRG sleep mode current consumption allowing a further increase in the battery lifetime of the applications.

Learn More About BlueNRG-1

BlueNRG-2

Bluetooth® Low-Energy Wireless System-On-Chip

The BlueNRG-2 is a very low-power BLE single-mode system-on-chip, compliant with the Bluetooth specifications. The BlueNRG-2 extends the features of the award-winning BlueNRG network processor, enabling the usage of the embedded Cortex M0 for running the user application code.

The BlueNRG-2 includes 256kB of programming Flash memory, 24kB of static RAM memory with retention (two 12kB banks) and SPI, UART, I²C standard communication interface peripherals. It also features multifunction timers, watchdog, RTC, and DMA controller.

An ADC is available for interfacing with analog sensors, and for reading the measurement of the integrated battery voltage sensor. A digital filter is available for processing a PDM stream.

The BlueNRG-2 offers the same excellent RF performance of the BlueNRG radio, and the integrated high-efficiency DC/DC converter keeps the same ultra-low power characteristics, but the BlueNRG-2 improves the BlueNRG sleep mode current consumption allowing a further increase in the battery lifetime of the applications.
