Texas Instruments TUSB564RNQEVM Evaluation Module

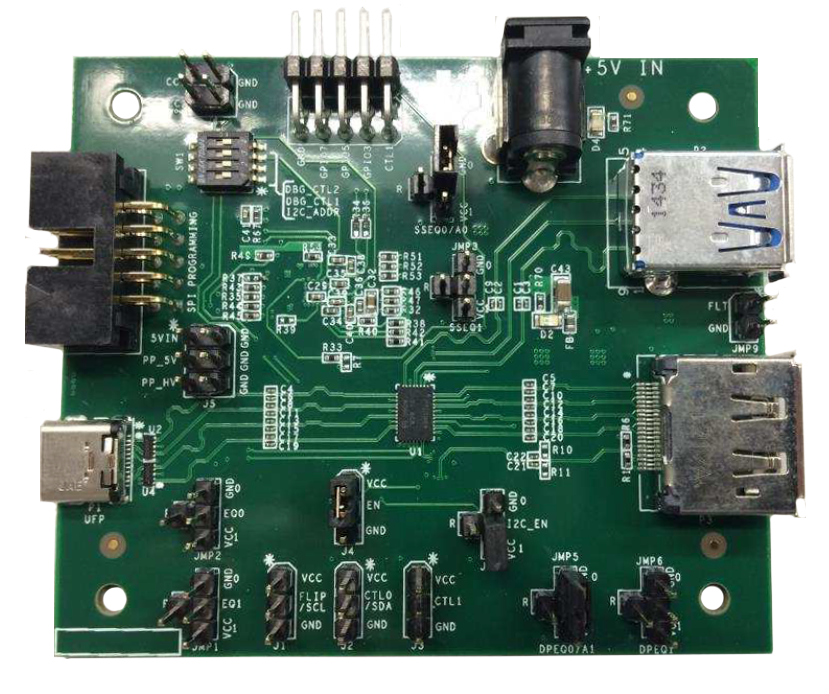

Texas Instruments TUSB564RNQEVM is a USB Type-C™/VESA DisplayPort™ Alternate Mode Re-driving switch Evaluation Module configurable through DIP switches. The Alternate Mode Type-C Source can be implemented within the TUSB1046 EVM and/or USB or DisplayPort Type-C Host system. A legacy Type-A USB receptacle is available to connect to a USB hub/device, and a DisplayPort™ receptacle to connect to the DisplayPort™ Sink. The Texas Instruments TUSB564RNQEVM Evaluation Module offers a plug-and-play design for convenience and flexibility.
Features
- Plug-and-play design
- Power the EVM by USB VBUS or 5 to 5.5V DC IN
- Configurable through DIP Switches
Test Board Setup
On The Board
Associated Product
Texas Instruments TPS20xxC Power-Distribution Switches
Fixed current-limit switches for applications between 0.5 and 2A.
