Texas Instruments UCC23313/UCC23313-Q1 Isolated Gate Drivers
Texas Instruments UCC23313/UCC23313-Q1 Isolated Gate Drivers are designed for IGBTs, MOSFETs, and SiC MOSFETs, with a 4.5A source, a 5.3A sink peak output current, and a 3.75kVRMS basic isolation rating. The UCC23313/UCC23313-Q1 has a high supply voltage range of 33V and allows the use of bipolar supplies to drive IGBTs and SiC power FETs effectively. The UCC23313/UCC23313-Q1 can drive low- and high-side power FETs.
The UCC23313/UCC23313-Q1 offers key features and characteristics that significantly enhance performance and reliability over standard optocoupler-based gate drivers while maintaining pin-to-pin compatibility in schematic and layout design. Performance highlights include high common-mode transient immunity (CMTI), low propagation delay, and small pulse width distortion. This tight process control results in a small part-to-part skew. The input stage is an emulated diode (ediode) which means long-term reliability and improved aging characteristics compared to traditional LEDs.
The UCC23313/UCC23313-Q1 isolated gate drivers are ideal for use in all types of motor drives, solar inverters, industrial power supplies, and appliances. The higher operating temperature of –40°C to +150°C opens up opportunities for applications not previously able to be supported by traditional optocouplers. The Texas Instruments UCC23313-Q1 devices are AEC-Q100 qualified for automotive applications.
Features
- 3.75kVRMS single channel isolated gate driver with opto-compatible input
- Pin-to-pin, drop-in upgrade for optoisolated gate drivers
- 4.5A source, 5.3A sink, peak output current
- 14V to 33V output driver supply voltage
- Rail-to-rail output
- 105ns (maximum) propagation delay
- 25ns (maximum) part-to-part delay matching
- 35ns (maximum) pulse width distortion
- 150kV/µs (minimum) common-mode transient immunity (CMTI)
- Isolation barrier life >50 Years
- 13V reverse polarity voltage handling capability on the input stage
- Stretched SO-6 package with >8.5mm creepage and clearance
- Operating junction temperature, TJ: –40°C to +150°C
- Safety-related certifications (Planned):
- 6000VPK basic isolation per DIN V VDE V0884-11: 2017-01
- 3.75kVRMS isolation for 1 minute per UL 1577
- CQC certification per GB4943.1-2011
Applications
- Industrial motor-control drives
- Industrial power supplies, UPS
- Solar inverters
- Induction heating
Datasheet

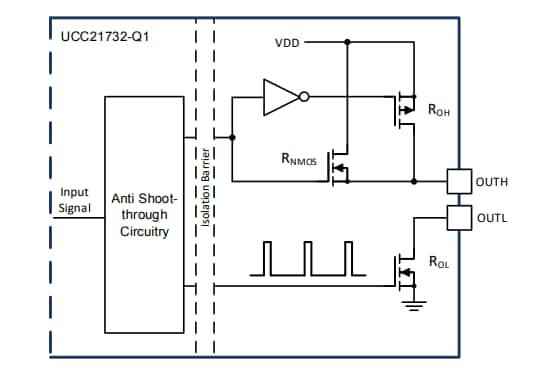

Functional Block Diagram
Related Development Tool
Texas Instruments UCC23513EVM-014 Gate Driver Evaluation Module
Designed for evaluation of TI's 5kVRMS isolated gate driver with opto compatible input, UCC23513.
