WeEn Semiconductors TYNxW-1600T Silicon Controlled Rectifiers (SCRs)

WeEn Semiconductors TYNxW-1600T Silicon Controlled Rectifiers (SCRs) are planar passivated devices for voltage ruggedness and reliability. The TYNxW-1600T SCRs feature high thermal cycling performance, a high voltage capability of 1600V, and a very high current surge capability. These WeEn SCRs come with a high junction operating temperature capability of +150°C. The TYNxW-1600T SCRs are available in a SOT429N (TO-247) plastic package intended for use in applications requiring very high inrush current capability. Typical applications include DC motor control, power converter, AC power control, lighting and temperature control, and uninterruptible power supplies (UPS).

Features

  • High junction operating temperature capability (+150°C Tj(max))
  • Very high current surge capability
  • Planar passivated for voltage ruggedness and reliability
  • High thermal cycling performance
  • High voltage capability
  • Low forward voltage drop
  • Enables the control of peak current at a power supply switch-on and limits the use of passive components

Applications

  • 50Hz/60Hz line rectifying
  • Soft start AC motor control
  • DC motor control
  • Power converter
  • AC power control
  • Lighting and temperature control
  • UPS
  • Solid-state relays (SSRs)
  • Traction battery charging

Specifications

  • 1600V repetitive peak off-state voltage VDRM
  • RMS on-state current IT(RMS)
    • 79A SCR (TYN50W-1600TQ)
    • 126A SCR (TYN80W-1600TQ)
  • 80mA gate current Igt
  • TO-247, through-hole package
  • +150°C operating temperature

Package Outline

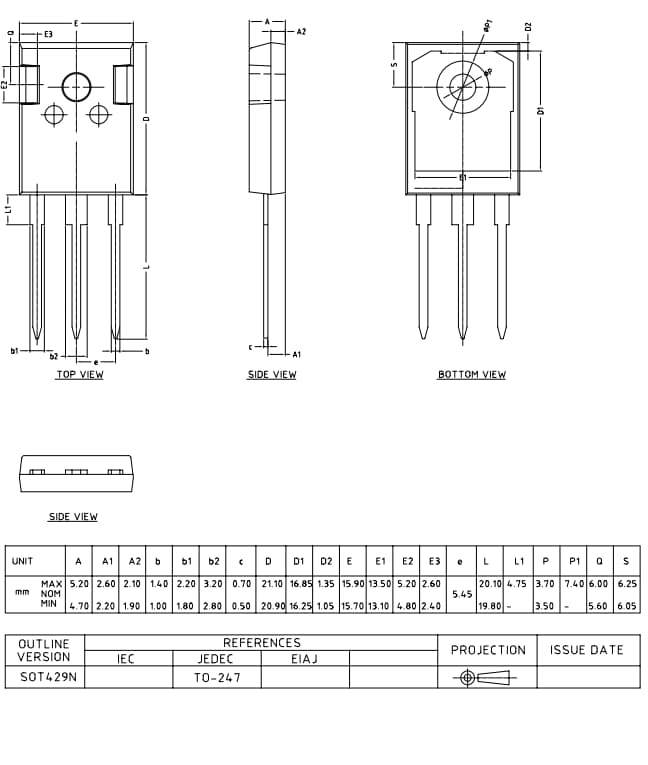

Mechanical Drawing - WeEn Semiconductors TYNxW-1600T Silicon Controlled Rectifiers (SCRs)
View Results ( 2 ) Page
Numéro de pièce Fiche technique Courant RMS à l'état passant - It RMS Courant à l'état passant non répétitif Puissance répétitive de la tension bloquée VDRM Température de fonctionnement min. Température de fonctionnement max.
TYN50W-1600TQ TYN50W-1600TQ Fiche technique 79 A 650 A 1.6 kV - 40 C + 150 C
TYN80W-1600TQ TYN80W-1600TQ Fiche technique 126 A 850 A 1.6 kV - 40 C + 150 C
